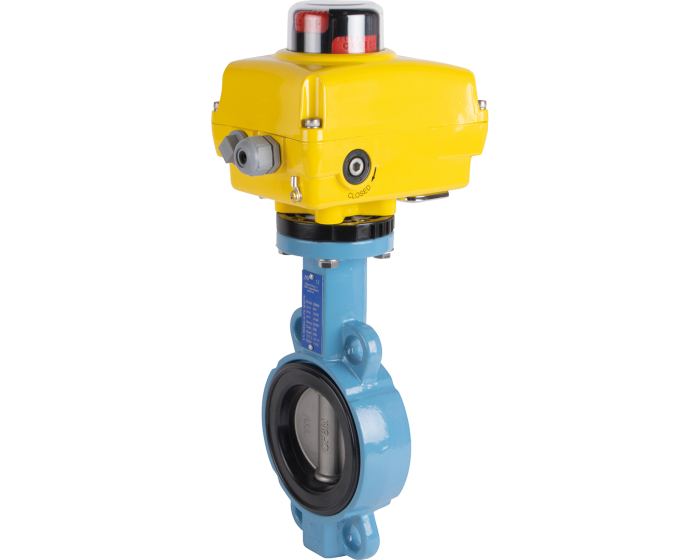

Ductile iron butterfly valve 1153 + SA/NA electric actuator

The TTV 1154 butterfly valve has a ductile iron body, a stainless steel disc and an FKM seat. It is actuated with an SA/NA electric actuator.
Choose your configuration
See all configurations
Réf.
CONF260393023010
(Indicative price) €1,572.80
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 304
Manual override By key
Torque (Nm) 106.4
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 33.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Seat FKM
Body material Ductile iron
Number of ways 2
Disc material Stainless steel CF8M
PS (bar) 16
Power (W) 6
Connections Between flanges PN10/16 #150
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 05
Electric actuator series SA/NA series
Operating time (s) 17.0
TS max (°C) 150
TS min (°C) -5
Butterfly valve design Concentric
Wafer/lug WAFER
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe No

Configurations

Product Reference Price Stock
Ductile iron butterfly valve 1154 DN32-40 + SA05 230V AC 260393023010 €1,572.80
31 pcs available in stock
Ductile iron butterfly valve 1154 DN50 + SA05 230V AC 260394023010 €1,595.08
101 pcs available in stock
Ductile iron butterfly valve 1154 DN65 + SA05 230V AC 260395023010 €1,600.00
41 pcs available in stock
Ductile iron butterfly valve 1154 DN80 + SA05 230V AC 260396023010 €1,760.88
110 pcs available in stock
Ductile iron butterfly valve 1154 DN100 + SA05 230V AC 260397023010 €1,840.42
118 pcs available in stock
Ductile iron butterfly valve 1154 DN125 + NA09 230V AC 260398023120 €3,247.38
9 pcs available in stock
Ductile iron butterfly valve 1154 DN150 + NA15 230V AC 260399023130 €4,087.92
18 pcs available in stock
Ductile iron butterfly valve 1154 DN200 + NA15 230V AC 260400023130 €4,654.30
18 pcs available in stock
Ductile iron butterfly valve 1154 DN250 + NA28 230V AC 260401023150 €7,025.30
9 pcs available in stock
Ductile iron butterfly valve 1154 DN300 + NA38 230V AC 260402023160 €8,733.05
2 pcs available in stock
Ductile iron butterfly valve 1154 DN350 + NA60 230V AC 260403023180 €9,166.68
1 pcs available in stock
Ductile iron butterfly valve 1154 DN400 + NA100 230V AC 260404023200 €13,119.08
Currently not in stock
