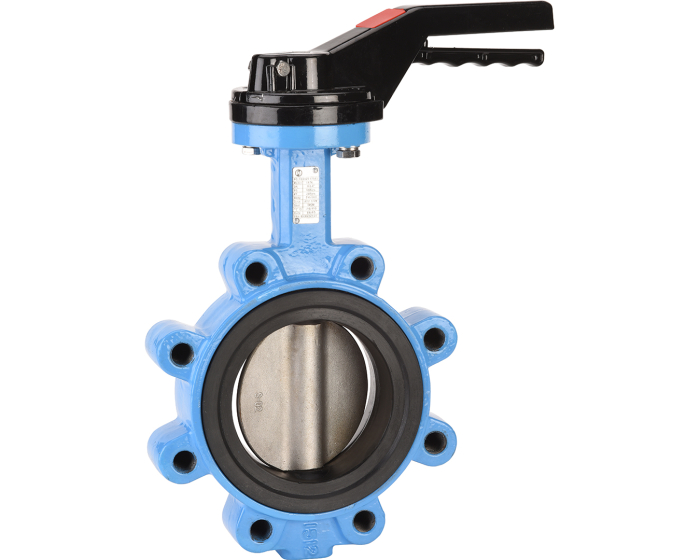

Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat

Discover the 1178 series butterfly valve with threaded lugs, made of cast iron body EN GJS-500-7, stainless steel disc, NBR seat, PN10/16 and Class 150.
Choose your configuration
See all configurations
Réf.
CONF1178050
(Indicative price) €97.83
Details
Details
Option certificate 3.1 Yes
DN inches NPS 2''
DN metric 50/60
Construction standard BS 5155
CE risk category III Module H
Type of paint Epoxy
Paint coating thickness (µm) 250.00
EN face-to-face standard EN 558 Series 20
DIN face-to-face standard DIN 3202 Part.3 Series K1
ISO face-to-face standard ISO 5752 Series 20
Tightness test standard EN 12266-1 Rate A
Type of seat Removable
Notch plate Yes
Opening device Handle
Application Industry
Shaft/stem matérial Stainless steel AISI 416
Lockable Yes
Square, star (mm) Square 9 mm
Torque (Nm) 15.1
Face to Face (mm) 43.0
Kv (m³/h) 99.0
Seat NBR
Body material Ductile iron
Disc material Stainless steel ASTM A351 CF8M
ISO pad 5211 F07
PS (bar) 16
TS max (°C) 90
TS min (°C) -10
Butterfly valve design Concentric
Wafer/lug Lug
Through shaft Yes
Warranty period 2 years
CE Yes
Handle material Aluminium

Configurations

Product Reference Price Stock
Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat DN40 1178040 €97.82
39 pcs available in stock
Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat DN50 1178050 €104.12
37 pcs available in stock
Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat DN65 1178065 €128.58
15 pcs available in stock
Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat DN80 1178080 €155.18
26 pcs available in stock
Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat DN100 1178100 €214.62
10 pcs available in stock
Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat DN125 1178125 €297.18
20 pcs available in stock
Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat DN150 1178150 €358.80
38 pcs available in stock
Ductile iron butterfly valve 1178 Lug CF8M disc/NBR seat DN200 1178200 €576.00
19 pcs available in stock
