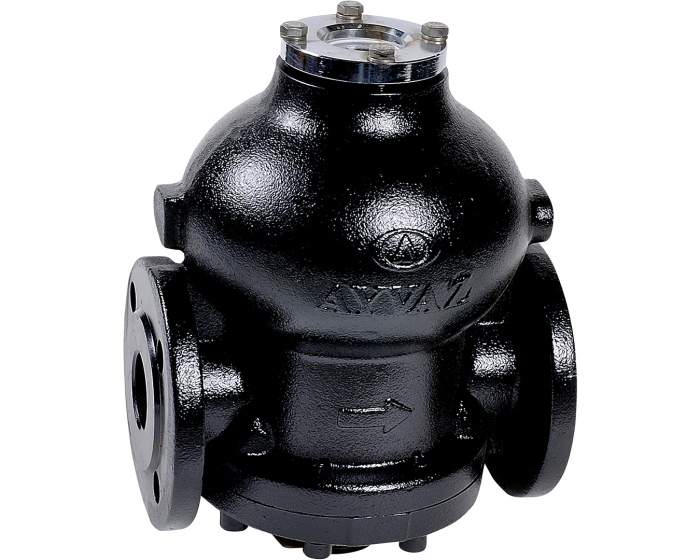

Ductile iron float steam trap SK 55 PN16 tempered sight glass

Automatic air vent with float, ductile iron body (EN-GJS-400-18), built-in thermostatic air vent, PS: 16 bar, TS: 250°C, flanged PN16 RF.
Choose your configuration
See all configurations
Réf.
CONF151840
(Indicative price) €1,527.80
Details
Details
Option certificate 3.1 Yes
Torque (Nm) 106.4
Face to Face (mm) 955.0
Body material Ductile iron
PS (bar) 16
Connections Flanged PN16
TS max (°C) 250
Trap type With float
Warranty period 1 year
CE Risk category I

Configurations

Product Reference Price Stock
Ductile iron float steam trap SK55 PN16 DN32 DP=4.5 bar 151840 €1,527.80
5 pcs available in stock
Ductile iron float steam trap SK55 PN16 DN32 DP=10 bar 151841 €1,527.80
5 pcs available in stock
Ductile iron float steam trap SK55 PN16 DN32 DP=14 bar 151842 €1,527.80
2 pcs available in stock
Ductile iron float steam trap SK55 PN16 DN40 DP=4.5 bar 151850 €1,527.80
Currently not in stock
Ductile iron float steam trap SK55 PN16 DN40 DP=10 bar 151851 €1,527.80
3 pcs available in stock
Ductile iron float steam trap SK55 PN16 DN40 DP=14 bar 151852 €1,527.80
1 pcs available in stock
Ductile iron float steam trap SK55 PN16 DN50 DP=4.5 bar 151860 €1,911.12
2 pcs available in stock
Ductile iron float steam trap SK55 PN16 DN50 DP=10 bar 151861 €1,911.12
Currently not in stock
Ductile iron float steam trap SK55 PN16 DN50 DP=14 bar 151862 €1,911.12
4 pcs available in stock
