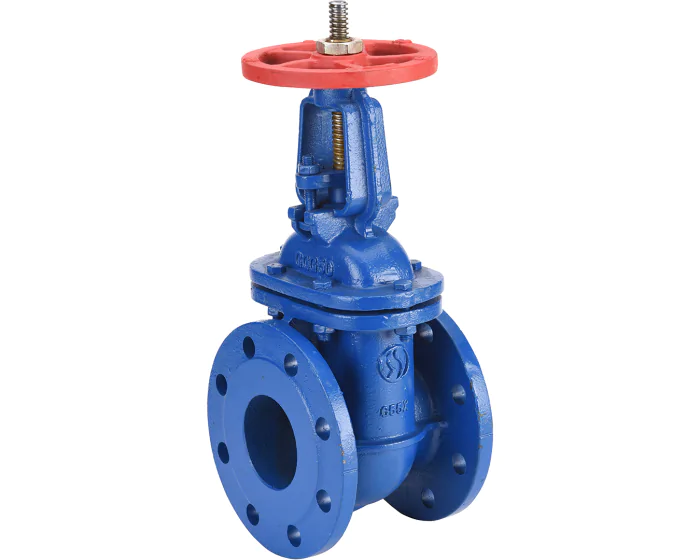

Ductile iron gate valve 158 high temperature RF PN10/16 NF

The 158 series gate valve is made of ductile iron body, stainless steel seats, rising stem and non rising handwheel, flanges RF PN10/16, EN 558 series 29 (NF 29323) face to face. It is suitable for water supply and heating networks.
Choose your configuration
See all configurations
Réf.
CONF158050
(Indicative price) €315.33
Details
Details
Option certificate 3.1 Yes
DN inches NPS 2''
Bonnet material Cast iron EN GJS-500-7
Construction standard DIN 3352
CE risk category III Module H
Paint coating thickness (µm) 90.00
Face to face standard EN 558 series 29. NF 29323
Tightness test standard EN 12266-1. Rate B
Bonnet Bolted
Opening device Handwheel
Application Air conditioning / Heating
Shaft/stem matérial Stainless steel AISI 420
Torque (Nm) 55.0
Diameter of passage 50.00
Face to Face (mm) 142.0
Sealing Metal / Metal
Fluid Hot water / Cold water / Drinking water
Gasket Graphite
Body material Ductile iron
Gate material Cast iron EN GJS-500-7
Bore Full
Packing gland Yes
PS (bar) 16
RAL (Paint) 5005
Seats Stainless steel AISI 304
TS max (°C) 180
TS min (°C) -10
Warranty period 2 years
Type of stem Rising
CE Yes
Main product colour Blue

Configurations

Product Reference Price Stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN40 158040 €315.32
9 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN50 158050 €321.00
64 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN65 158065 €373.80
Currently not in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN80 158080 €451.20
146 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN100 158100 €711.82
456 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN125 158125 €933.00
69 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN150 158150 €1,190.80
103 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN200 158200 €2,014.20
13 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN10 NF DN200 158201 €2,014.20
20 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN250 158250 €2,914.32
14 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN10 NF DN250 158251 €2,914.32
24 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN300 158300 €3,934.05
1 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN300 158301SF €3,934.05
5 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN400 158350 €6,521.05
6 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN10 NF DN400 158351 €6,521.05
9 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN450 158400 €8,359.00
4 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN10 NF DN450 158401 €8,359.00
9 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN500 158500 €13,847.80
Currently not in stock
Ductile iron gate valve 158 high temperature RF PN10 NF DN500 158501 €13,847.80
3 pcs available in stock
Ductile iron gate valve 158 high temperature RF PN16 NF DN600 158600 €18,253.88
Currently not in stock
Ductile iron gate valve 158 high temperature RF PN10 NF DN600 158601 €18,253.88
3 pcs available in stock
