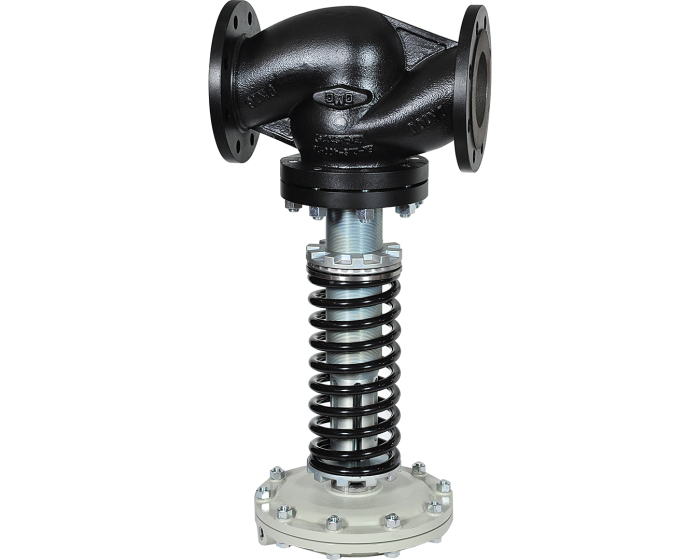

Ductile iron pressure reducing valve RD10 RF PN16

Allows to reduce steam pressure. PS: 16 bar - TS: 200°C. Rangeability: 10/1. Flanged connections PN16 RF. Condensation pot required.
Choose your configuration
See all configurations
Réf.
CONF159015009
(Indicative price) €3,852.70
Details
Details
Option certificate 3.1 No
Actuator AR 265
Torque (Nm) 106.4
DN 15
Face to Face (mm) 600.0
Kv (m³/h) 5.00
Body material Ductile iron
Downstream pressure range (bar) 0.4 / 1
PS (bar) 16
Connections Flanged PN16
Seats Metal/metal
TS max (°C) 300
ATEX zone 1.21.2.22
Warranty period 1 year
CE Excluded (Article 4. §3)

Configurations

Product Reference Price Stock
Ductile iron pressure reducing valve RF PN16 RD10 DN15 AR265/0,4-1b 159015009 €5,176.30
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN15 AR205/0,9-1,8b 159015018 €4,754.58
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN15 AR150/1,8-3b 159015030 €4,182.30
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN15 AR120/3-5b 159015050 €4,159.00
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN15 AR100/5-7b 159015070 €3,900.68
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN15 AR85/7-14b 159015140 €3,852.70
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN20 AR265/0,4-1b 159020009 €5,403.32
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN20 AR205/0,9-1,8b 159020018 €4,981.62
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN20 AR150/1,8-3b 159020030 €4,409.32
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN20 AR120/3-5b 159020050 €4,386.05
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN20 AR100/5-7b 159020070 €4,127.70
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN20 AR85/7-14b 159020140 €4,079.80
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN25 AR265/0,4-1b 159025009 €5,570.95
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN25 AR205/0,9-1,8b 159025018 €5,149.25
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN25 AR150/1,8-3b 159025030 €4,576.95
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN25 AR120/3-5b 159025050 €4,553.68
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN25 AR100/5-7b 159025070 €4,295.32
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN25 AR85/7-14b 159025140 €4,247.38
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN32 AR265/0,4-1b 159032009 €5,611.42
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN32 AR205/0,9-1,8b 159032018 €5,189.70
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN32 AR150/1,8-3b 159032030 €4,617.42
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN32 AR120/3-5b 159032050 €4,594.12
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN32 AR100/5-7b 159032070 €4,335.80
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN32 AR85/7-14b 159032140 €4,287.92
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN40 AR265/0,4-1b 159040009 €5,854.95
37 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN40 AR205/0,9-1,8b 159040018 €5,433.25
37 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN40 AR150/1,8-3b 159040030 €4,860.88
37 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN40 AR120/3-5b 159040050 €4,837.58
37 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN40 AR100/5-7b 159040070 €4,579.32
37 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN40 AR85/7-14b 159040140 €4,531.38
37 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN50 AR265/0,4-1b 159050009 €6,589.58
74 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN50 AR205/0,9-1,8b 159050018 €6,167.88
74 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN50 AR150/1,8-3b 159050030 €5,595.58
74 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN50 AR120/3-5b 159050050 €5,572.30
74 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN50 AR100/5-7b 159050070 €5,313.95
74 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN65 AR265/0,4-1b 159065009 €7,563.68
59 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN65 AR205/0,9-1,8b 159065018 €7,141.92
59 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN65 AR150/1,8-3b 159065030 €6,569.62
59 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN65 AR120/3-5b 159065050 €6,546.32
59 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN65 AR100/5-7b 159065070 €6,288.05
59 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN80 AR265/0,4-1b 159080009 €8,997.55
164 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN80 AR205/0,9-1,8b 159080018 €8,575.80
164 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN80 AR150/1,8-3b 159080030 €8,003.45
164 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN80 AR120/3-5b 159080050 €7,980.18
164 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN80 AR100/5-7b 159080070 €7,721.92
164 pcs available in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN100 AR265/0,4-1b 159091009 €10,522.92
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN100 AR205/0,9-2,6b 159091018 €10,101.20
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN100 AR150/1,8-3b 159091030 €9,528.92
Currently not in stock
Ductile iron pressure reducing valve RF PN16 RD10 DN100 AR120/3-5b 159091050 €9,505.62
Currently not in stock
