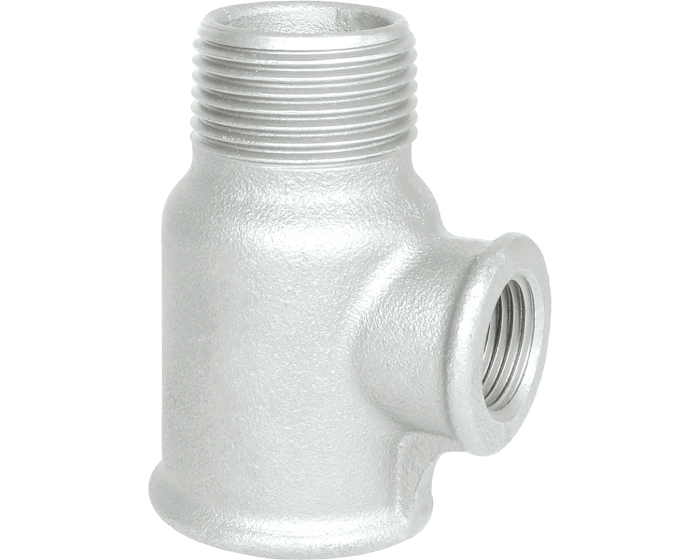

Equal tee male/female - Galvanised - 134
The Series 134 is a malleable cast iron fitting from the Tupy range, male-female-female equal tee model, galvanised for cold water, hot water, fire systems, heating, compressed air, sprinklers.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/1/3/134G-raccord-fonte-te-mff-galva.jpg)
Documentation
Details
Construction standard | NF EN 10242 - ISO 49 |
---|---|
Brand | GF |
Thread standard | ISO 7-1 R/ISO 7-1 Rp |
Type of coating | Hot-dip galvanised |
Material | Malleable iron EN-GJMW-400-5 |
Application | Industry |
Fluid | Cold water |
PS (bar) | 25 |
Connections | BSP MFF |
TS max (°C) | 300 |
TS min (°C) | -20 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Type of fitting | Malleable iron |
Fitting shape | Equal tee |
Dimensions (Fitting) | 15 |
