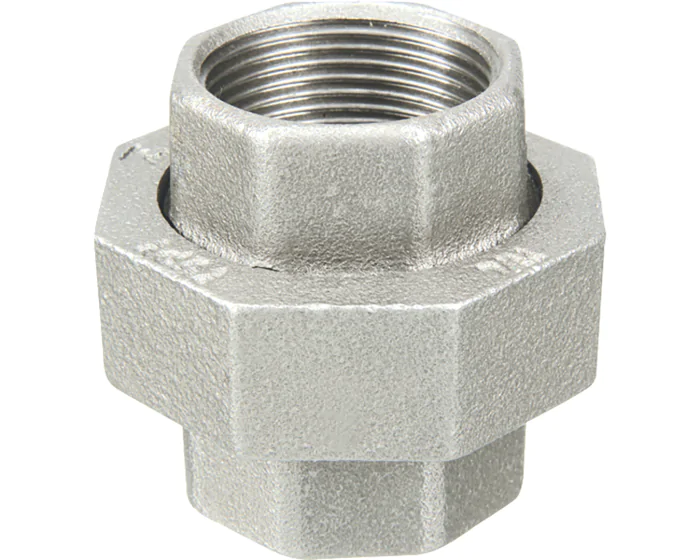

Equal union conical bearing female - Galvanised - 340
The Tupy Series 340 is a malleable cast iron union fitting with tapered gasket for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/3/4/340G-raccord-fonte-union-egal-joint-conique-ff-galva.jpg)
Documentation
Details
Construction standard | NF EN 10242 - ISO 49 |
---|---|
Brand | TUPY |
Thread standard | ISO 7-1 Rp |
Type of coating | Hot-dip galvanised |
Material | Malleable iron EN-GJMB-350-10 |
Application | Industry |
Fluid | Cold water |
PS (bar) | 25 |
Connections | BSP FF |
TS max (°C) | 300 |
TS min (°C) | -20 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Type of fitting | Malleable iron |
Fitting shape | Equal union - conical bearing |
Dimensions (Fitting) | 15 |
