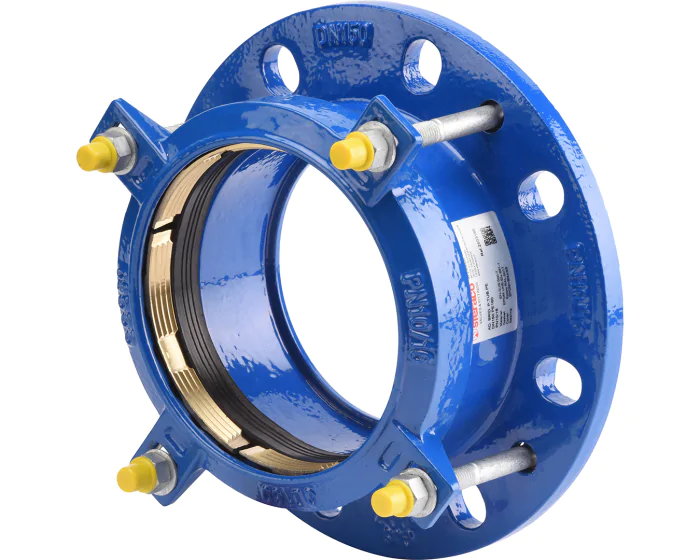

Flange adaptor 2503 for PVC & PE pipes
Discover the ACS 2503 Series locked flange adapter for the connection of water supply and distribution networks, irrigation and drinking water. With a support leg for mounting wafer valves.
Documentation
Certificat ACS Raccord Eau
pdf - 238.9 ko
Certificate of Conformity
pdf - 214.9 ko
Notice montage Raccords eau Adaptateur à bride verrouillé
pdf - 537.4 ko
Details
Type of tube | Polyethylene / PVC |
---|---|
Construction standard | ISO 9001:2008 |
Type of paint | Epoxy |
Paint coating thickness (µm) | 250.00 |
Tightness test standard | EN 12226-1 |
Connection | Flange adapter |
Type of fitting | With stop for wafer mounting |
Application | Water supply and distribution network |
Torque (Nm) | 106.4 |
Face to Face (mm) | 130.0 |
Fluid | Cold water |
Gasket | EPDM |
Body material | Ductile iron |
PS (bar) | 16 |
Connections | Flanged PN10/16 |
TS max (°C) | 60 |
TS min (°C) | 0 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Main product colour | Blue |
Type of fitting | Water |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Flange adaptor 2503 for PVC & PE pipes DN50-60-65 / Øext.63 | 2503063 | €110.78 |
114 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN60-75 / Øext.75 | 2503075 | €131.12 |
55 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN80 / Øext.90 | 2503090 | €140.72 |
63 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN100 / Øext.110 | 2503110 | €160.88 |
268 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN125 / Øext.125 | 2503125 | €201.35 |
201 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN125 / Øext.140 | 2503140 | €218.65 |
174 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN150 / Øext.160 | 2503160 | €256.28 |
308 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN150 / Øext.180 | 2503180 | €297.02 |
37 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN200 / Øext.200 | 2503200 | €322.82 |
96 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN200 / Øext.225 | 2503225 | €495.60 |
67 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN250 / Øext.250 | 2503250 | €604.35 |
68 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN250 / Øext.280 | 2503280 | €634.40 |
54 pcs available in stock
|
|
Flange adaptor 2503 for PVC & PE pipes DN300 / Øext.315 | 2503315 | €733.88 |
257 pcs available in stock
|
