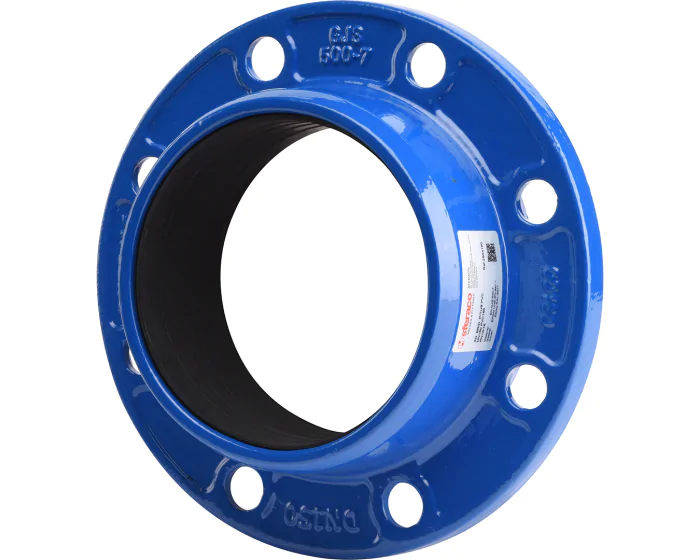

Flange adaptor 2504 for PVC & PE pipes PN10/16
The flange adaptor 2504 for PVC & PE pipes PN10/16 ensures a reliable connection between flanged fittings and plain-ended pipes.
Documentation
Certificat ACS Raccords eau
pdf - 238.9 ko
Certificat ACS Raccord Eau
pdf - 238.9 ko
Certificate of Conformity
pdf - 192.8 ko
Fiche technique
pdf - 263.1 ko
Details
Type of tube | PVC |
---|---|
Construction standard | ISO 9001:2008 |
Type of paint | Epoxy |
Paint coating thickness (µm) | 250 |
Tightness test standard | EN 12226-1 |
Connection | Flange adapter |
Type of fitting | free |
Application | Water supply and distribution network |
Face to Face (mm) | 54.0 |
Fluid | Cold water |
Gasket | EPDM |
Body material | Ductile iron |
PS (bar) | 16 |
Connections | Flanged PN10/16 |
TS max (°C) | 60 |
TS min (°C) | 0 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Main product colour | Blue |
Type of fitting | Water |
