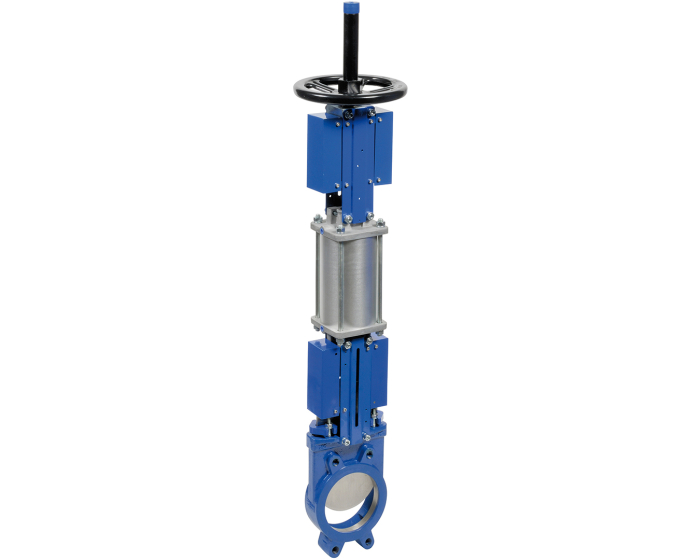

Knife gate valve 170 +double acting pneu. actuator +manual override

The 170 series unidirectional knife gate valves is made of cast iron GL body, NBR seat and is actuated with double acting pneumatic cylinder with manual override. Mounting between flanges PN10. PS: 10 bar, TS: -10/+90°C.
Choose your configuration
See all configurations
Réf.
CONF440004035050
(Indicative price) €1,212.00
Details
Details
Option certificate 3.1 Yes
Shaft/stem matérial Stainless steel 410
ATEX compatible Yes
Manual override By handwheel
Torque (Nm) 106.4
DN 50
Face to Face (mm) 40.0
Knife gate material Stainless steel 304
Body material Cast iron
Packing gland PTFE + NBR
PS (bar) 10
Connections Between flanges PN10
Seats NBR
Surface temperature TX
TS max (°C) 90
TS min (°C) -10
Pneumatic actuator type Double acting
Direction Unidirectional
ATEX zone 2. 22
Warranty period 1 year
CE Risk category I

Configurations

Product Reference Price Stock
CI knife gate valve 170 DN50 + DA pneumatic actuator + manual override 440004035050 €1,212.00
17 pcs available in stock
CI knife gate valve 170 DN65 + DA pneumatic actuator + manual override 440005035051 €1,285.42
23 pcs available in stock
CI knife gate valve 170 DN80 + DA pneumatic actuator + manual override 440006035052 €1,330.08
20 pcs available in stock
CI knife gate valve 170 DN100 + DA pneumatic actuator +manual override 440007035053 €1,652.95
98 pcs available in stock
CI knife gate valve 170 DN125 + DA pneumatic actuator +manual override 440008035054 €1,676.62
33 pcs available in stock
CI knife gate valve 170 DN150 + DA pneumatic actuator +manual override 440009035055 €1,928.55
Currently not in stock
CI knife gate valve 170 DN200 + DA pneumatic actuator +manual override 440010035056 €3,178.58
46 pcs available in stock
CI knife gate valve 170 DN250 + DA pneumatic actuator +manual override 440011035057 €3,643.20
35 pcs available in stock
CI knife gate valve 170 DN300 + DA pneumatic actuator +manual override 440012035058 €4,190.00
Currently not in stock
