Modular manifolds RCOL with sliding press fittings - Ø body 26mm

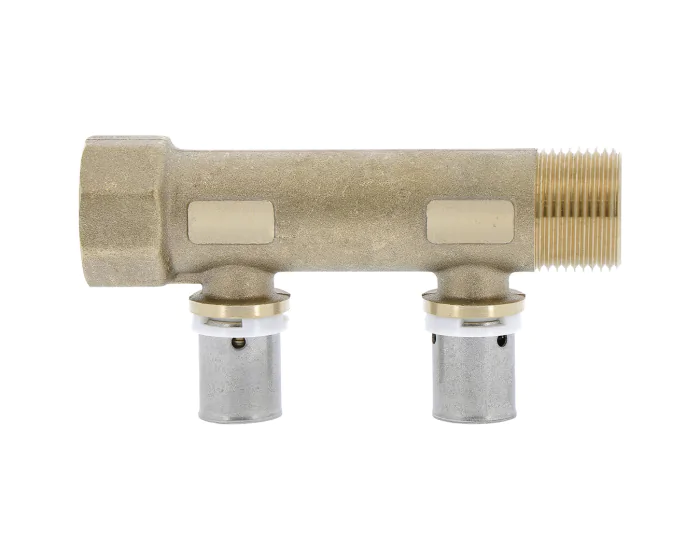

PBtub's SERTIPRESS 10x12 mm brass radial distribution manifold for sanitary systems has hose nipples with integrated stainless steel rings. Distribution manifold diameter: 3/4".
Documentation
Details
| Diameter (mm) | 10 x 12 |
|---|---|
| Body diameter (mm) | 26 |
| Number of outlets | 2 |
| Outlet diameter | 10 x 12 |
| Switching device | No |
| Modular | Yes |
| Air vent outlet | No |
| Centre distance (mm) | 50 |
| Fitting for | PER |
| Supply diameter | 3/4'' |
| Nature of the bearing | Flat |
| Material | Brass |
| Torque (Nm) | 106.4 |
| DN | 15 |
| Distribution manifold type | Female |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 2 sliding sleeveoutlets 10x12 | RCOL4212 | €17.50 |
352 pcs available in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 2 sliding sleeveoutlets 13x16 | RCOL4216 | €17.50 |
166 pcs available in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 3 sliding sleeveoutlets 10x12 | RCOL4312 | €23.75 |
Currently not in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 3 sliding sleeveoutlets 13x16 | RCOL4316 | €24.48 |
530 pcs available in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 4 sliding sleeveoutlets 10x12 | RCOL4412 | €30.75 |
Currently not in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 4 sliding sleeveoutlets 13x16 | RCOL4416 | €31.30 |
603 pcs available in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 5 sliding sleeveoutlets 10x12 | RCOL4512 | €37.50 |
71 pcs available in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 5 sliding sleeveoutlets 13x16 | RCOL4516 | €40.00 |
259 pcs available in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 6 sliding sleeveoutlets 10x12 | RCOL4612 | €40.65 |
48 pcs available in stock
|
|
| Modular manifolds RCOL 3/4'' - body Ø26mm - 6 sliding sleeveoutlets 13x16 | RCOL4616 | €50.00 |
123 pcs available in stock
|
