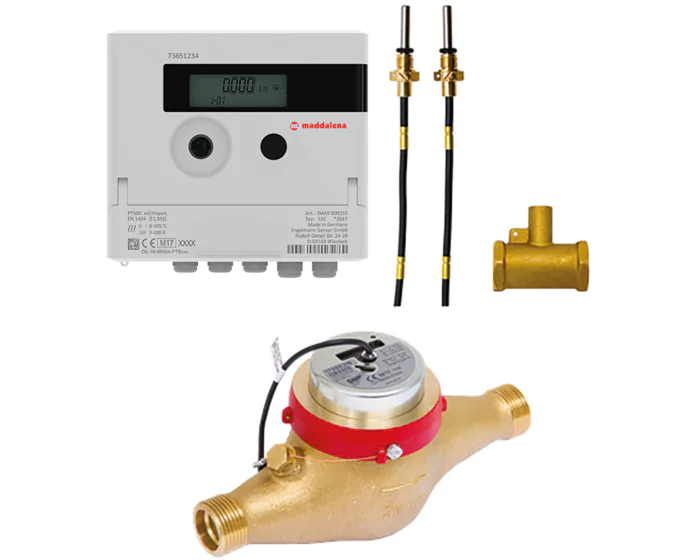

Multi jet thermal energy meter - Heating
Syveco offers the Maddalena Series 2744 energy meter, multi-jet calorie model, 8-digit LCD display, lithium battery, programmable, for heating and cooling
Documentation
Details
| Construction standard | MID 2014/32/UE - EN 1434 |
|---|---|
| Meter type | Mechanical energy meter |
| Type of energy meter | Heating |
| Horizontal/vertical mounting | Horizontal only |
| Brand | MADDALENA |
| Transmission | On-site reading |
| Male output | 3/4'' |
| Jet | Multi jet |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Torque (Nm) | 106.4 |
| DN | 15 |
| Face to Face (mm) | 165.0 |
| Body material | Brass |
| PS (bar) | 16 |
| Connections | BSP MM |
| TS max (°C) | 15 |
| TS min (°C) | 90 |
| Warranty period | 2 years |
| Accuracy class meters | CLASS 3 |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Multi jet thermal energy meter - Heating - 2 pulse outlets bore 15 | 2744015 | €1,301.98 |
Currently not in stock
|
|
| Multi jet thermal energy meter - Heating - M-bus bore 15 | 2744016 | €1,282.72 |
Currently not in stock
|
|
| Multi jet thermal energy meter - Heating - 2 pulse outlets bore 20 | 2744020 | €1,306.42 |
3 pcs available in stock
|
|
| Multi jet thermal energy meter - Heating - M-bus bore 20 | 2744021 | €1,287.18 |
Currently not in stock
|
|
| Multi jet thermal energy meter - Heating - 2 pulse outlets bore 25 | 2744025 | €1,450.18 |
10 pcs available in stock
|
|
| Multi jet thermal energy meter - Heating - M-bus bore 25 | 2744026 | €1,430.92 |
2 pcs available in stock
|
|
| Multi jet thermal energy meter - Heating - 2 pulse outlets bore 32 | 2744032 | €1,555.40 |
Currently not in stock
|
|
| Multi jet thermal energy meter - Heating - M-bus bore 32 | 2744033 | €1,536.15 |
4 pcs available in stock
|
|
| Multi jet thermal energy meter - Heating - 2 pulse outlets bore 40 | 2744040 | €1,986.00 |
Currently not in stock
|
|
| Multi jet thermal energy meter - Heating - M-bus bore 40 | 2744041 | €1,966.75 |
Currently not in stock
|
|
| Multi jet thermal energy meter - Heating - 2 pulse outlets bore 50 | 2744050 | €2,652.05 |
Currently not in stock
|
|
| Multi jet thermal energy meter - Heating - M-bus bore 50 | 2744051 | €2,632.80 |
Currently not in stock
|
|
| Multi jet thermal energy meter - Heating - 2 pulse outlets high flow bore 25 | 2744125 | €1,450.18 |
5 pcs available in stock
|
|
| Multi jet thermal energy meter - Heating - M-bus high flow bore 25 | 2744126 | €1,430.92 |
6 pcs available in stock
|
