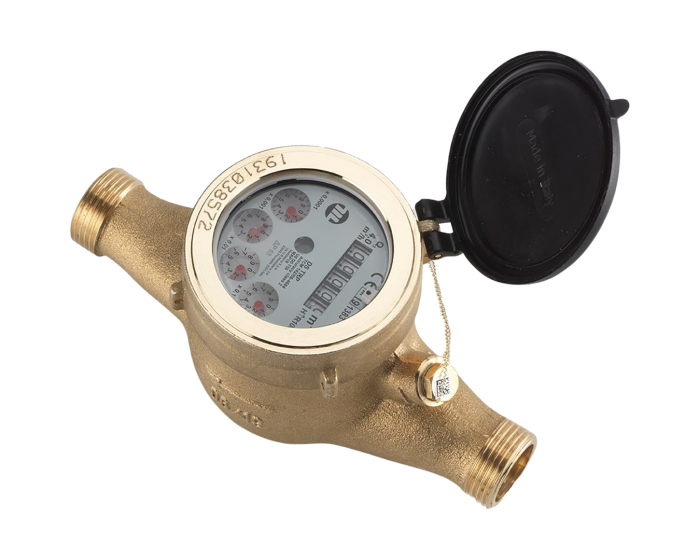

Multi jet water meter for cold water MID R160

Discover the MID R160 2771 Series multi-jet water meter from the Maddalena range, cold water model, pre-equipped with pulses, protected rollers, with filled dial, non-rotating, brass body for water distribution networks
Choose your configuration
See all configurations
Réf.
CONF2771015
(Indicative price) €131.62
Details
Details
Construction standard MID 2014/32/UE - EN 14154 - ISO 4064
Horizontal transition flow rate (L/h) 25
Meter type First intake water meter
Type of transmission Pulse outlet / Radio / Wired M-Bus
Horizontal/vertical mounting Horizontal only
Brand MADDALENA
Male output 3/4''
Dial Dry
Jet Multi jet
Thread standard ISO 228-1
Meter bore (diameter) 15
Application Water supply and distribution network
Face to Face (mm) 170.0
Body material Brass
PS (bar) 16
TS max (°C) 0
TS min (°C) 50
Warranty period 2 years
Nominal flow rate (m³/h) 2.50
Accuracy class meters MID R160H -

Configurations

Product Reference Price Stock
Produit
Multi jet water meter for cold water MID R160 1 pulse per 1l bore 15
Produit
Multi jet water meter for cold water MID R160 1 pulse per 10l bore 15
Produit
Multi jet water meter for cold water MID R160 1 pulse per 100l bore 15
Produit
Multi jet water meter for cold water MID R160 1 pulse per 1l bore 20
Produit
Multi jet water meter for cold water MID R160 1 pulse per 10l bore 20
Produit
Multi jet water meter for cold water MID R160 1 pulse per 100l bore 20
Produit
Multi jet water meter for cold water MID R160 1 pulse per 1l bore 25
Produit
Multi jet water meter for cold water MID R160 1 pulse per 10l bore 25
Produit
Multi jet water meter for cold water MID R160 1 pulse per 100l bore 25
Produit
Multi jet water meter for cold water MID R160 1 pulse per 1l bore 32
Produit
Multi jet water meter for cold water MID R160 1 pulse per 10l bore 32
Produit
Multi jet water meter for cold water MID R160 1 pulse per 100l bore 32
Produit
Multi jet water meter for cold water MID R160 1 pulse per 1l bore 40
Produit
Multi jet water meter for cold water MID R160 1 pulse per 10l bore 40
Produit
Multi jet water meter for cold water MID R160 1 pulse per 100l bore 40
Produit
Multi jet water meter for cold water MID R160 1 pulse per 1l bore 50
Produit
Multi jet water meter for cold water MID R160 1 pulse per 10l bore 50
Produit
Multi jet water meter for cold water MID R160 1 pulse per 100l bore 50

18 Item(s)
