Documentation
Fiche technique électrodistributeur 5/2 BM520
pdf - 219.6 ko
Data sheet 5/2 Solenoid valve BM520
pdf - 223 ko

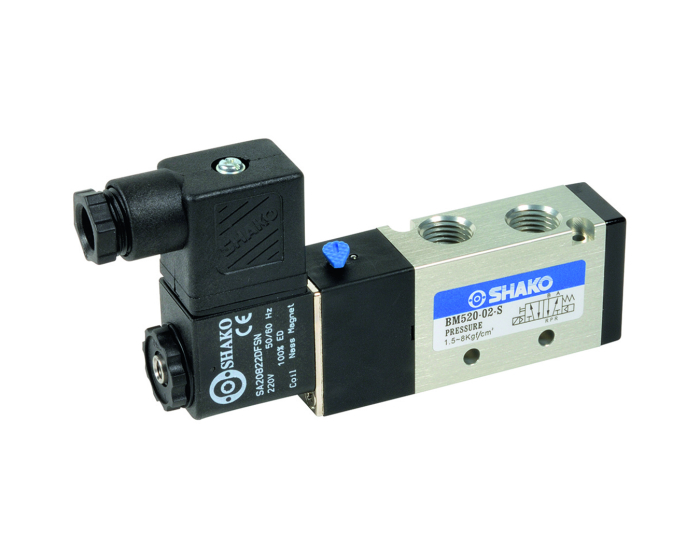

Namur solenoid pilot valve 4249 monostable SHAKO BM520 5/2
The BM 520 5/2 monostable solenoid valve is designed to control pneumatic knife gate valves. Anodised aluminium body, TS: -10 / +60°C.
Details
Flanged ball valve with floating ball
Body in stainless steel 1.4408
Ball in stainless steel A 351 Gr. CF8M
Ball for regulation with V-port 60°
Seats in Stansit
Max. working pressure: 40 bar (DN 15 to DN 50), 16 bar (DN 65 to DN 200)
Face to face: EN558-1 series 27
Connection: flanged PN 16/40 (DN 15 to DN 50), PN 16 (DN 65 to DN 200)
ISO mounting flange
Fire safe according to ISO 10497
With pneumatic actuator spring return type ASO, spring to open, air to close
Equipped with:
Electropneumatic positioner, single acting type 6DR-5110 - HART protocol - incl. VDI/VDE 90° mounting set
