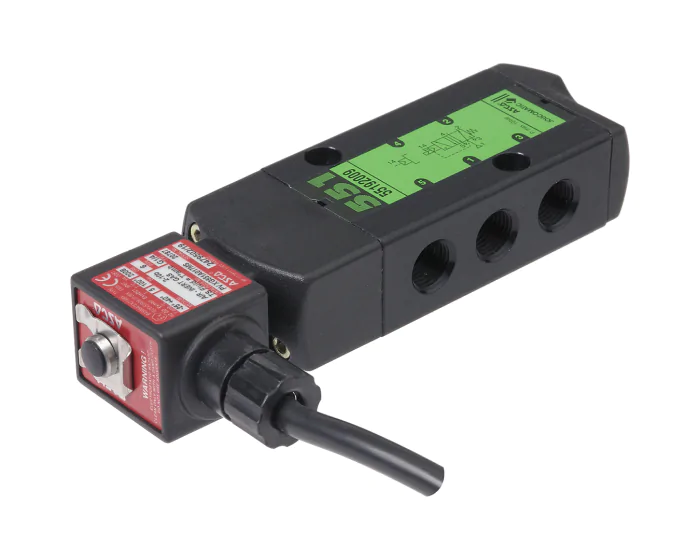

Namur solenoid pilot valve 4282 monostable ASCO 551-PV 3/2-5/2 ATEX

NAMUR ASCO 551 3/2-5/2 solenoid valve for driving 1/4 turn pneumatic actuators in ATEX zones 1, 21, 2 and 22. PV coil, ATEX II 2G Ex mb IIC T4. Overmoulded 2m wire.
Choose your configuration
See all configurations
Réf.
CONF042820
(Indicative price) €515.00
Details
Details
Maximum delta P (bar) 10
Minimum delta P (bar) 2
ATEX atmosphere IIC
ATEX compatible Yes
Diameter of passage 6
Fluid Air / Neutral gases / Filtered
Protection index (IP) IP 67
Kv (m³/h) 0.60
Body material Aluminium
ATEX protection mode EEx mb
Pilot (NAMUR) Asco
PS (bar) 10
Surface temperature T4
TS max (°C) 60
TS min (°C) -25
Solenoid pilot valve type monostable
Solenoid pilot valve ways 3/2 - 5/2
ATEX zone 1. 2. 21. 22
Warranty period 1 year
Electrical connection Cable 2m

Configurations

Product Reference Price Stock
Produit
Namur solenoid pilot valve 4282 monostable 551-PV 3/2-5/2 ATEX 230VAC
Produit
Namur solenoid pilot valve 4282 monostable 551-PV 3/2-5/2 ATEX 24VAC
Produit
Namur solenoid pilot valve 4282 monostable 551-PV 3/2-5/2 ATEX 24VDC

3 Item(s)
