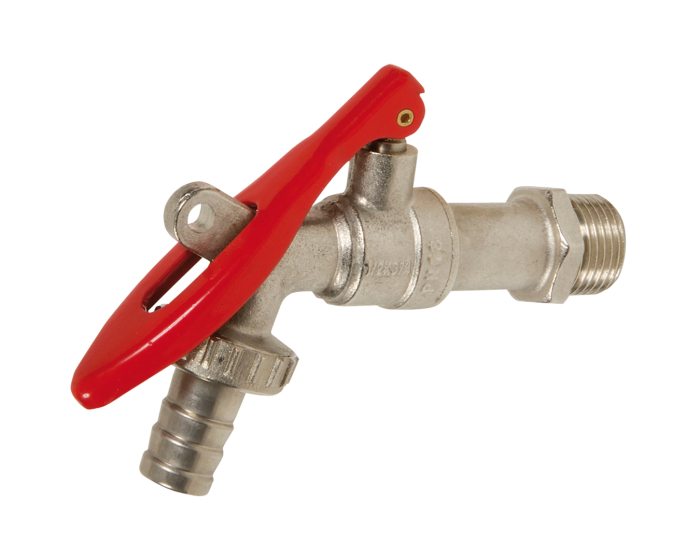

Nickel-plated bibcock valve with locking device 699

Discover the Series 699 lockable 4MS nickel-plated brass ACS ball valve with 1/4 turn lever control. Nose fitting with integrated jet breaker.
Choose your configuration
See all configurations
Réf.
CONF699045
(Indicative price) €14.70
Details
Details
DN inches NPS 1/2''
DN metric 15/21
Thread standard ISO 228-1
Stem sealing material NBR double O-ring
Type of coating Nickel-plated
Opening device Handle
Application Water supply and distribution network
Shaft/stem matérial Stainless steel AISI 410
Lockable Yes
DN 15
DN (Output) 3/4''
Face to Face (mm) 55.0
Fluid Cold water
Body material Brass CW617N
Number of ways 2
PS (bar) 16
Connections BSP MM
Seats PTFE
Ball material Chrome-plated brass
TS max (°C) 60
TS min (°C) -10
Warranty period 2 years
Hose nipple diameter (mm) 19.0
Handle material Carbon steel
Handle type Red lever

Configurations

Product Reference Price Stock
Nickel-plated bibcock valve with locking device 699 1/2''- outlet 3/4'' 699045 €14.70
235 pcs available in stock
Nickel-plated bibcock valve with locking device 699 3/4''- outlet 3/4'' 699055 €19.12
250 pcs available in stock
