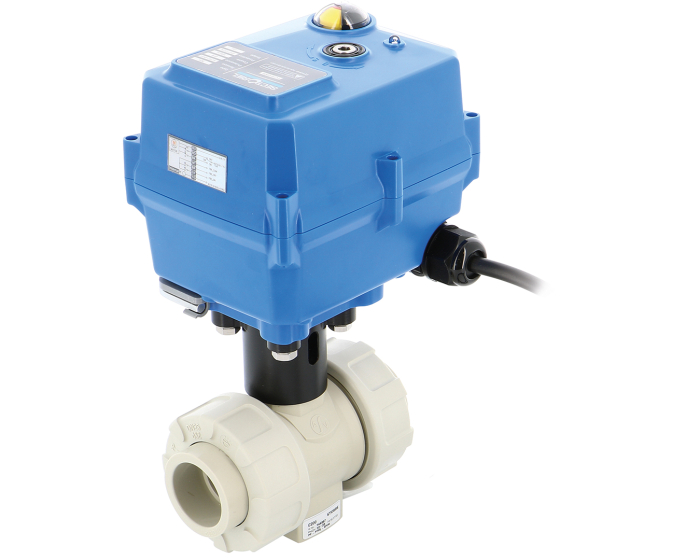

PP/EPDM ball valve C200 + TCR02N electric actuator

Ball valve body, ball and shaft: PP, gasket: EPDM, seats: PTFE. PS: 10 bar - TS: +80°C. Actuation with TCR-N electric actuator. Union fittings with female threaded connection to be welded.
Choose your configuration
See all configurations
Réf.
CONF5110AC015024110
(Indicative price) €991.55
Details
Details
Option certificate 3.1 No
Maximum delta P (bar) 10
ATEX compatible No
Manual override By key
Declutchable No
Duty service S4 duty service - 50%
Protection class (IP) IP 67
Gasket EPDM
Body material PP
Number of ways 2
PS (bar) 10
Connections Polyfusion socket union
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type TCR02-N
Electric actuator series TCR Series
Seats PTFE
TS max (°C) 80
TS min (°C) 10
Warranty period 1 year
Electrical connection Cable 1.5 m

Configurations

Product Reference Price Stock
PP ball valve C200/EPDM gaskets DN15 d20 + TCR02N 5110AC015024110 €1,267.30
Currently not in stock
PP ball valve C200/EPDM gaskets DN20 d25 + TCR02N 5110AC020024110 €991.55
Currently not in stock
PP ball valve C200/EPDM gaskets DN25 d32 + TCR02N 5110AC025024110 €1,143.82
1 pcs available in stock
PP ball valve C200/EPDM gaskets DN32 d40 + TCR02N 5110AC032024110 €1,166.50
2 pcs available in stock
PP ball valve C200/EPDM gaskets DN40 d50 + TCR02N 5110AC040024110 €1,273.68
2 pcs available in stock
PP ball valve C200/EPDM gaskets DN50 d63 + TCR02N 5110AC050024110 €1,291.68
4 pcs available in stock
