Documentation
Documentation commerciale
pdf - 322.4 ko
Notice de mise en service XMP6 BIPOLAIRE
pdf - 35.6 ko
Details
Packaging dimensions L x W x H (mm) | 164x116x54 |
---|---|
Material | Polyamide |
Liquid temperature range (°C) | 0 / +70 |
Weight with packaging (kg) | 0.5 |
Maximum operating pressure | 8 |
1/4" pressure gauge port | No |
Low pressure monitoring | No |
Manufacturer settings | 1.4-2.8 bar |

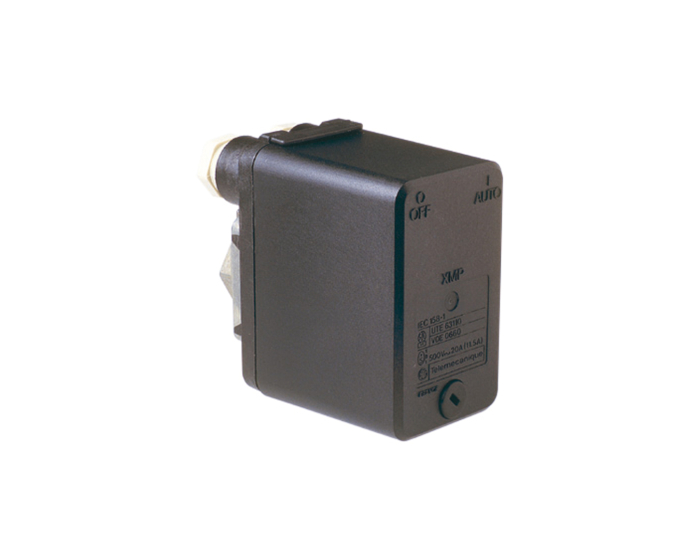

Pressure switch XMP 6 bipolar
Automation for single-phase 230 V pumps up to 1.5 kw installed with bladder or diaphragm tank. Factory settings: 1.4 - 2.8 bar. Max. starting pressure: 6 bar. Minimum difference in starting pressure and stopping pressure: 0.6 bar.
Réf.
412500
(Indicative price)
€64.00
272 pcs available in stock
