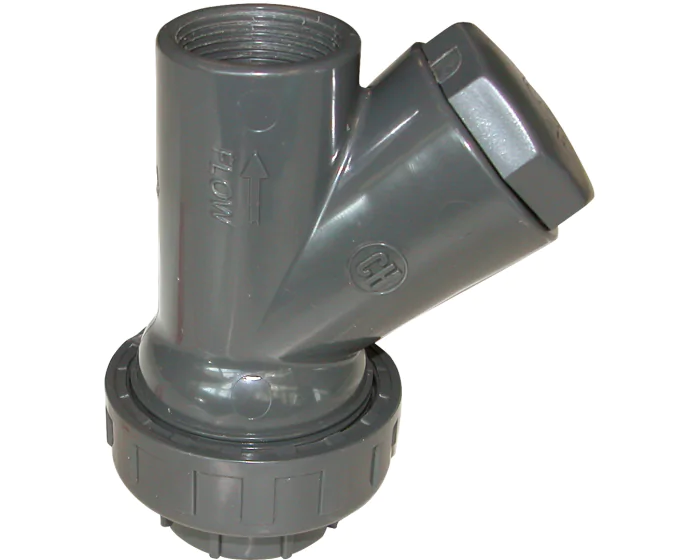

PVC ball check valve threaded 334
Syveco offers the ball check valve, series 334, in PVC - U in compliance with the standard for lifting stations, with inspection plug, low head loss, female / female BSP fitting, for water networks
Documentation
Certificate of Conformity
pdf - 209.6 ko
Fiche technique clapet à boule PVC NF en120504 femelle BSP
pdf - 411.8 ko
Details
Mounting direction | Horizontal or vertical upward flow |
---|---|
Thread standard | ISO 228-1 |
Closure member material | EPDM coated aluminium |
Lifting station standard | Yes |
Application | Water supply and distribution network |
Torque (Nm) | 106.4 |
DN | 32 |
Face to Face (mm) | 144.0 |
Fluid | Cold water |
Gasket | EPDM |
Body material | PVC-U |
PS (bar) | 10 |
Connections | BSP FF |
Seats | PVC |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 2 years |
Obturator type | Ball |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
PVC ball check valve threaded 334 1''1/4 | 334007 | €90.50 |
93 pcs available in stock
|
|
PVC ball check valve threaded 334 1''1/2 | 334008 | €122.65 |
321 pcs available in stock
|
|
PVC ball check valve threaded 334 2'' | 334009 | €173.75 |
249 pcs available in stock
|
|
PVC ball check valve threaded 334 2''1/2 | 334010 | €359.32 |
29 pcs available in stock
|
|
PVC ball check valve threaded 334 3'' | 334011 | €504.78 |
1 pcs available in stock
|
