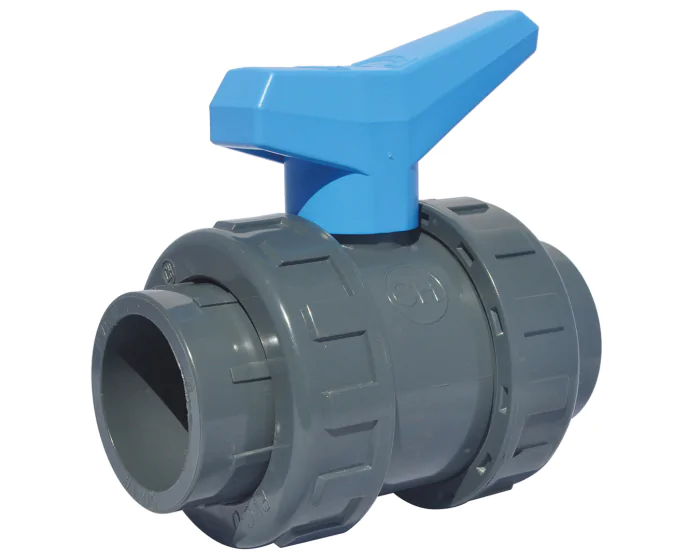

PVC ball valve 583 with glued unions ends
Discover the PVC-U ball valve, reference 583, for shut-off of water supply and distribution networks, swimming pools, irrigation and watering. 3-piece body model with end caps to be glued.
Documentation
Certificate of Conformity
pdf - 209.2 ko
Fiche technique vanne à sphère PVC bâtiment à coller
pdf - 527.8 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Details
DN inches NPS | 3/4'' |
---|---|
DN metric | 20/27 |
Stem sealing material | EPDM double O-ring |
Opening device | Handle |
Application | Building / HVAC / Irrigation |
Shaft/stem matérial | PVC-U |
Torque (Nm) | 106.4 |
Diameter of passage | 15.00 |
DN | 20 |
Face to Face (mm) | 94.5 |
Fluid | Cold water |
Body material | PVC-U |
Number of ways | 2 |
Bore | Full |
PS (bar) | 16 |
Connections | To be glued FF |
Seats | HDPE |
Ball material | PVC-U |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 2 years |
Handle material | Polypropylene |
Handle type | Blue handle |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
PVC ball valve 583 with glued unions ends DN15 d20 | 583020 | €15.22 |
110 pcs available in stock
|
|
PVC ball valve 583 with glued unions ends DN20 d25 | 583025 | €17.10 |
215 pcs available in stock
|
|
PVC ball valve 583 with glued unions ends DN25 d32 | 583032 | €21.45 |
149 pcs available in stock
|
|
PVC ball valve 583 with glued unions ends DN32 d40 | 583040 | €26.45 |
161 pcs available in stock
|
|
PVC ball valve 583 with glued unions ends DN40 d50 | 583050 | €31.52 |
215 pcs available in stock
|
|
PVC ball valve 583 with glued unions ends DN50 d63 | 583063 | €46.80 |
128 pcs available in stock
|
|
PVC ball valve 583 with glued unions ends DN65 d75 | 583075 | €178.32 |
48 pcs available in stock
|
|
PVC ball valve 583 with glued unions ends DN80 d90 | 583090 | €222.75 |
14 pcs available in stock
|
