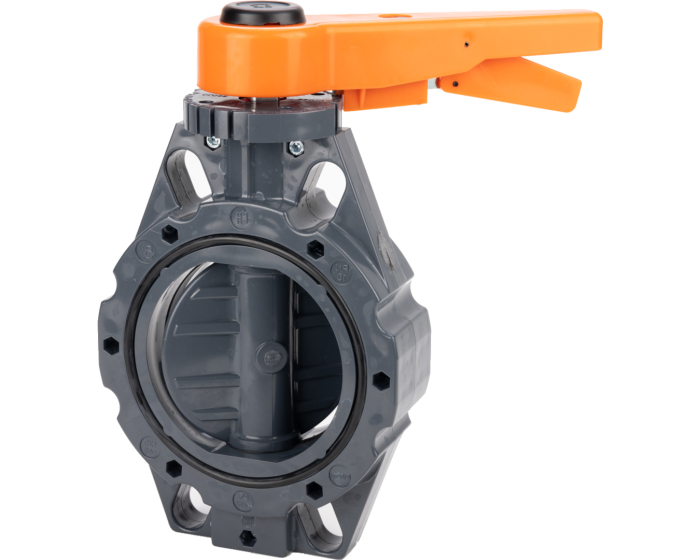

PVC butterfly valve 1100 flanged PN10
Discover the Sferaco 1100 series disc valve with PVC-U centring lugs, motorisable, mounted between PN10/16 flanges, 7-position handle for swimming pools, water supply and distribution networks
Documentation
Certificate of Conformity
pdf - 207.5 ko
Fiche technique robinet papillon Wafer PVC-U EPDM PN10/16
pdf - 563.7 ko
Notice montage robinet papillon Wafer PVC-U
pdf - 593.4 ko
Installation operating manual PVC-U butterfly valve Wafer
pdf - 472.3 ko
Technical datasheet PVC-U butterfly valve Wafer EPDM PN10/16
pdf - 483.1 ko
Details
DN inches NPS | 2''1/2 |
---|---|
Option certificate 3.1 | Yes |
DN metric | 66/76 |
DN plastic | 75 |
Construction standard | ISO 2536 |
Notch plate | Yes |
Opening device | Handle |
Application | Water supply and distribution network |
Square, star (mm) | Square 12 mm |
Torque (Nm) | 15 |
Face to Face (mm) | 50.0 |
Fluid | Cold water |
Body material | PVC-U |
Disc material | PVC-U |
ISO pad 5211 | F07 |
PS (bar) | 10 |
Connections | Between flanges PN10 |
Seats | EPDM |
TS max (°C) | 60 |
TS min (°C) | 0 |
Butterfly valve design | Concentric |
Wafer/lug | WAFER |
Through shaft | Yes |
Warranty period | 2 years |
Handle material | ABS |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
PVC butterfly valve 1100 flanged PN10 DN65 d75 | 1100065 | €182.22 |
46 pcs available in stock
|
|
PVC butterfly valve 1100 flanged PN10 DN80 d90 | 1100080 | €211.08 |
15 pcs available in stock
|
|
PVC butterfly valve 1100 flanged PN10 DN100 d110 | 1100100 | €201.72 |
26 pcs available in stock
|
|
PVC butterfly valve 1100 flanged PN10 DN125 d140 | 1100125 | €244.38 |
9 pcs available in stock
|
|
PVC butterfly valve 1100 flanged PN10 DN150 d160 | 1100150 | €321.62 |
2 pcs available in stock
|
|
PVC butterfly valve 1100 flanged PN10 DN200 d225 | 1100200 | €417.40 |
9 pcs available in stock
|
