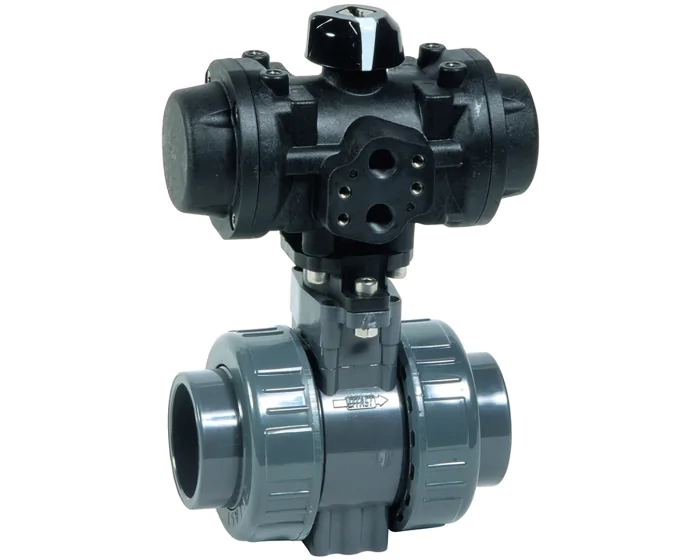

PVC-U ball valve B1 + PP/PPS pneumatic actuator
The B1 + Prisma ball valve is a 2-way full bore valve for automatic shut-off applications. PVC-U body and ball. PTFE seats. EPDM tightness. ACS APPROVED. Available in single or double spring return.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Actuator | PP00 |
| Operating angle (°) | 90 |
| Adjustable limit screws | No |
| ATEX compatible | No |
| Torque (Nm) | 106.4 |
| Gasket | EPDM |
| Body material | PVC-U |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Solvent cement socket union |
| Seats | PTFE |
| Ball material | PVC-U |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC015012103 | €641.78 |
8 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC015012123 | €701.82 |
8 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC020012103 | €668.40 |
8 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC020012123 | €728.45 |
8 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC025012103 | €708.95 |
9 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC025012123 | €769.05 |
11 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC032012103 | €723.95 |
4 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC032012123 | €784.00 |
4 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC040012103 | €748.95 |
3 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC040012123 | €809.05 |
3 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC050012103 | €922.55 |
9 pcs available in stock
|
|
| PVC-U ball valve B1 DN15 d20 + PP00 | 5100PC050012126 | €1,076.55 |
15 pcs available in stock
|
