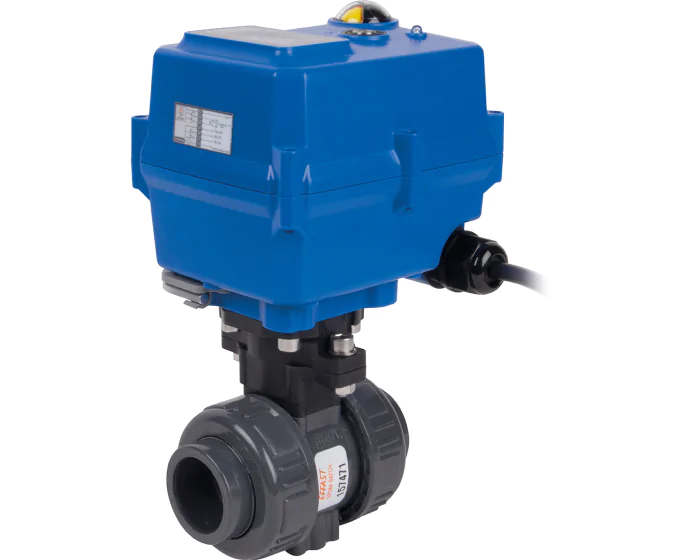

PVC-U ball valve B1 + TCR05 electric actuator
Ball valve body, ball and stem: PVC-U, seals: EPDM, seats: PTFE. PS: 16 bar - TS: 0 / +60°C. Motorisation with TCR-N electric actuator. Union connections with female spigot to be glued. ACS approval.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| ATEX compatible | No |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection class (IP) | IP 67 |
| Gasket | EPDM |
| Body material | PVC-U |
| Number of ways | 2 |
| PS (bar) | 16 |
| Connections | Solvent cement socket union |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR05-N |
| Electric actuator series | TCR Series |
| Seats | PTFE |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Warranty period | 1 year |
| Electrical connection | Cable 1.5 m |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| PVC-U ball valve B1 DN15 d20 + TCR05 | 5100PC015024310 | €782.72 |
8 pcs available in stock
|
|
| PVC-U ball valve B1 DN20 d25 + TCR05 | 5100PC020024310 | €809.32 |
8 pcs available in stock
|
|
| PVC-U ball valve B1 DN25 d32 + TCR05 | 5100PC025024310 | €849.95 |
11 pcs available in stock
|
|
| PVC-U ball valve B1 DN32 d40 + TCR05 | 5100PC032024310 | €864.90 |
4 pcs available in stock
|
|
| PVC-U ball valve B1 DN40 d50 + TCR05 | 5100PC040024310 | €889.22 |
3 pcs available in stock
|
|
| PVC-U ball valve B1 DN50 d63 + TCR05 | 5100PC050024310 | €964.82 |
18 pcs available in stock
|
