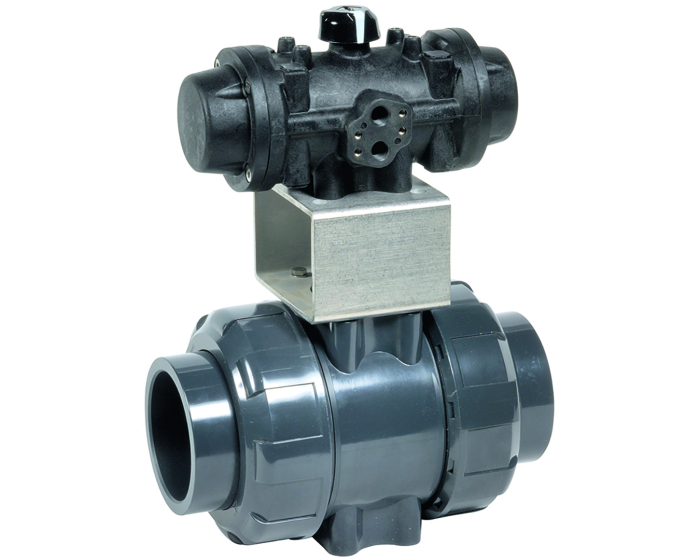

PVC-U ball valve CL1 with FKM gaskets + PP/PPS pneumatic actuator
Ball valve with pneumatic actuator. PVC-U body and ball. Full bore. PTFE seats. FKM seal. Union fittings with female threaded ends to be welded. Single or double spring return pneumatic actuation.
Details
Option certificate 3.1 | No |
---|---|
Maximum delta P (bar) | 10 |
Actuator | PP10 |
Operating angle (°) | 90 |
Adjustable limit screws | No |
ATEX compatible | No |
Torque (Nm) | 106.4 |
Gasket | FKM |
Body material | PVC-U |
Number of ways | 2 |
Bore | Full |
PS (bar) | 10 |
Connections | Solvent cement socket union |
Seats | PTFE |
Ball material | PVC-U |
TS max (°C) | 55 |
TS min (°C) | 0 |
Ball valve design | 3-piece body |
Warranty period | 1 year |
Fire safe | No |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
PVC-U ball valve CL1/FKM gaskets DN65 d75 + PP10 | 5101SC065012106 | €1,474.10 |
2 pcs available in stock
|
|
PVC-U ball valve CL1/FKM gaskets DN65 d75 + PP10S | 5101SC065012126 | €1,588.95 |
2 pcs available in stock
|
|
PVC-U ball valve CL1/FKM gaskets DN80 d90 + PP10 | 5101SC080012106 | €1,627.82 |
3 pcs available in stock
|
|
PVC-U ball valve CL1/FKM gaskets DN80 d90 + PP10S | 5101SC080012126 | €1,743.55 |
14 pcs available in stock
|
|
PVC-U ball valve CL1/FKM gaskets DN100 d110 + PP20 | 5101SC100012109 | €2,042.90 |
2 pcs available in stock
|
|
PVC-U ball valve CL1/FKM gaskets DN100 d110 + PP20S | 5101SC100012129 | €2,282.60 |
2 pcs available in stock
|
