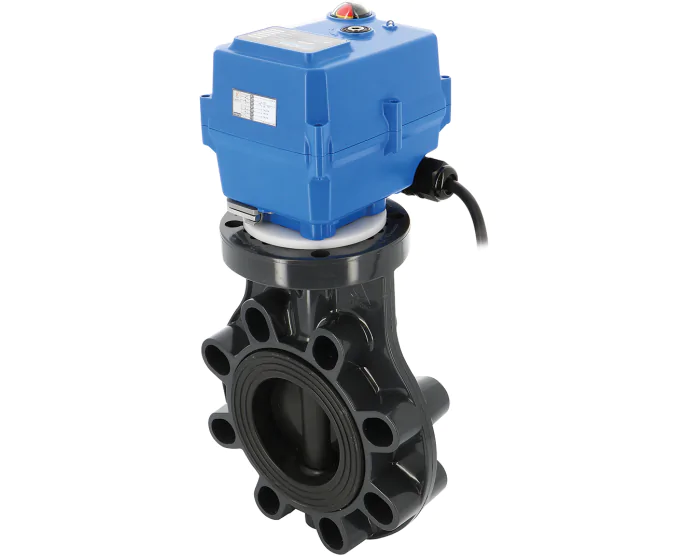

PVC-U butterfly valve PL1 + TCR electric actuator
Butterfly valve with PVC-U body, PP disc and EPDM seat. Actuation with 1/4 turn electric actuator type TCR-N. Mounting between flanges PN10.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 304 |
| ATEX compatible | No |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 34.0 |
| 3D indicator | Yes |
| Protection class (IP) | IP 67 |
| Seat | EPDM |
| Body material | PVC-U |
| Number of ways | 2 |
| Disc material | PPGF |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR05-N |
| Electric actuator series | TCR Series |
| TS max (°C) | 55 |
| TS min (°C) | 0 |
| Butterfly valve design | Concentric |
| Wafer/lug | WAFER |
| Warranty period | 1 year |
| Electrical connection | By cable 1.5 m |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| PVC butterfly valve PL1 DN40 d34 + TCR05 | 5300SW040024310 | €903.28 |
3 pcs available in stock
|
|
| PVC butterfly valve PL1 DN50 d44 + TCR05 | 5300SW050024310 | €931.60 |
23 pcs available in stock
|
|
| PVC butterfly valve PL1 DN65 d46 + TCR05 | 5300SW065024310 | €967.50 |
7 pcs available in stock
|
|
| PVC butterfly valve PL1 DN80 d57 + TCR05 | 5300SW080024310 | €1,128.55 |
13 pcs available in stock
|
|
| PVC butterfly valve PL1 DN100 d60 + TCR05 | 5300SW100024310 | €1,197.78 |
8 pcs available in stock
|
|
| PVC butterfly valve PL1 DN125 d66 + TCR11 | 5300SW125024610 | €1,617.50 |
12 pcs available in stock
|
|
| PVC butterfly valve PL1 DN150 d72 + TCR11 | 5300SW150024610 | €1,668.78 |
2 pcs available in stock
|
|
| PVC butterfly valve PL1 DN200 d82 + TCR11 | 5300SW200024610 | €2,291.90 |
3 pcs available in stock
|
|
| PVC butterfly valve PL1 DN250 d92 + TCR40 | 5300SW250024720 | €4,675.10 |
1 pcs available in stock
|
|
| PVC butterfly valve PL1 DN300 d98 + TCR40 | 5300SW300024720 | €4,443.82 |
2 pcs available in stock
|
