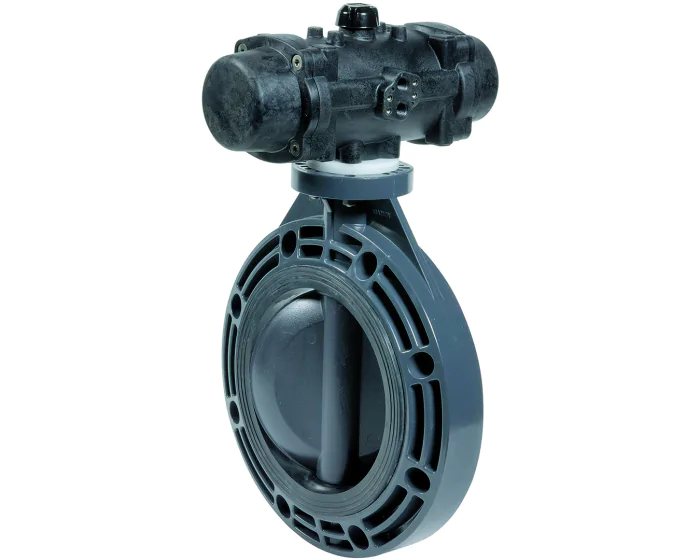

PVC-U butterfly valve PL1 +PP/PPS pneumatic actuator
Butterfly valve with PVC-U body, PP disc and EPDM seat. Pneumatic actuator with Prisma actuator in PA. PS: 10 bar - TS: 0 / +55°C. Mounting between flanges PN10.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Actuator | PP00 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | No |
| ATEX compatible | No |
| Torque (Nm) | 106.4 |
| Face to Face (mm) | 34.0 |
| Seat | EPDM |
| Body material | PVC-U |
| Number of ways | 2 |
| Disc material | PPGF |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| TS max (°C) | 55 |
| TS min (°C) | 0 |
| Butterfly valve design | Concentric |
| Wafer/lug | WAFER |
| Warranty period | 1 year |
| Range | Water - Water treatment |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| PVC-U butterfly valve PL1/EPDM seat DN40 d50 + PP00 | 5300SW040012103 | €761.90 |
3 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN40 d50 + PP10S | 5300SW040012126 | €1,046.55 |
3 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN50 d63 + PP00 | 5300SW050012103 | €1,023.55 |
9 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN50 d63 + PP10S | 5300SW050012126 | €1,076.05 |
15 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN65 d75 + PP00 | 5300SW065012103 | €805.45 |
7 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN65 d75 + PP10S | 5300SW065012126 | €1,078.00 |
7 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN80 d90 + PP10 | 5300SW080012106 | €1,123.32 |
3 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN80 d90 + PP10S | 5300SW080012126 | €1,239.05 |
13 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN100 d110 +PP10 | 5300SW100012106 | €1,161.95 |
3 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN100 d110+PP20S | 5300SW100012129 | €1,588.45 |
6 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN125 d140 +PP20 | 5300SW125012109 | €1,367.40 |
2 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN125 d140+PP20S | 5300SW125012129 | €1,607.05 |
6 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN150 d160 +PP20 | 5300SW150012109 | €1,418.68 |
2 pcs available in stock
|
|
| PVC-U butterfly valve PL1/EPDM seat DN200 d225 +PP20 | 5300SW200012109 | €1,730.28 |
2 pcs available in stock
|
|
| PL1 PVC-U/EPDM DN200 d225 + RES116 PNEU. ACT. Spring return / DP=10bar | 5300SW200017111R | €1,988.95 |
3 pcs available in stock
|
