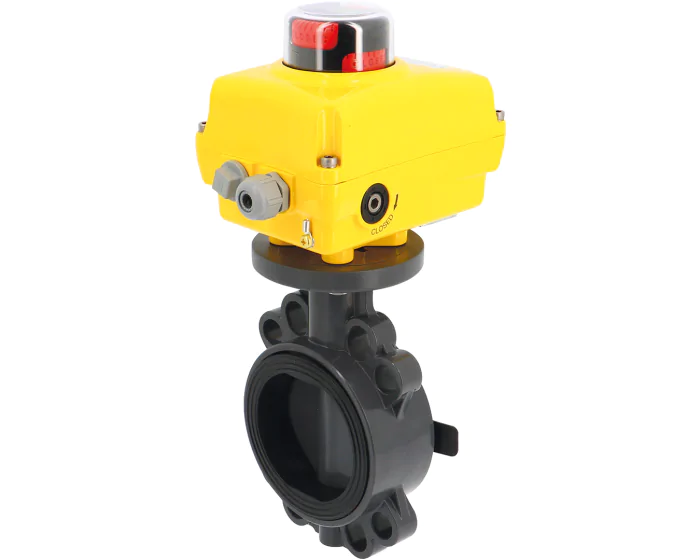

PVC-U butterfly valve PL2 + SA + NA electri actuator
PL2 butterfly valve with PVC-U body, PVC disc and EPDM seat. Installation between flanges PN 10. PS: 10 bar. TS: 0°C / + 60°C. Actuation with SA/NA electric actuator. IP 67 heavy duty.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 420b |
| ATEX compatible | No |
| Manual override | By key |
| Declutchable | Yes |
| DN | 65 |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 48 |
| Current (A) | 0.2 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | PVC-U |
| Number of ways | 2 |
| Disc material | PVC-U |
| PS (bar) | 10 |
| Power (W) | 6 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| Electrical connection | Per gland packing M20 x 1.5 |
