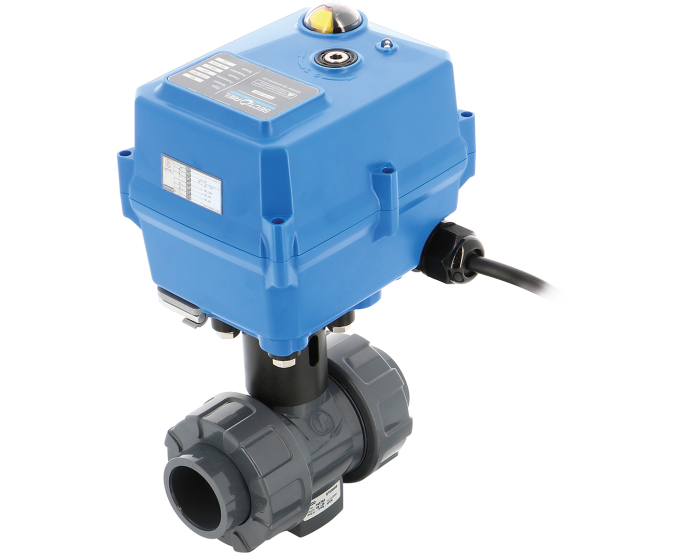

PVC-U/EPDM ball valve C200 + TCR02N electric actuator

Ball valve body, ball and shaft: PVC-U, gasket: EPDM, seats: PTFE. PS: 16 bar- TS: 0 / +60°C. Actuation with TCR-N electric actuator. Union fittings with female thread to be glued.
Choose your configuration
See all configurations
Réf.
CONF5100AC015024110
(Indicative price) €962.20
Details
Details
Option certificate 3.1 No
Maximum delta P (bar) 10
ATEX compatible No
Manual override By key
d (mm) 20
Declutchable No
DN 15
Duty service S4 duty service - 50%
Protection class (IP) IP 67
Gasket EPDM
Body material PVC-U
Number of ways 2
PS (bar) 16
Connections Solvent cement socket union
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type TCR02-N
Electric actuator series TCR Series
Seats PTFE
Voltage 95-265 V AC/DC
TS max (°C) 60
TS min (°C) 0
Warranty period 1 year
Electrical connection Cable 1.5 m

Configurations

Product Reference Price Stock
PVC-U ball valve C200/EPDM gaskets DN15 d20 + TCR02N 5100AC015024110 €1,243.68
15 pcs available in stock
PVC-U ball valve C200/EPDM gaskets DN20 d25 + TCR02N 5100AC020024110 €962.20
Currently not in stock
PVC-U ball valve C200/EPDM gaskets DN25 d32 + TCR02N 5100AC025024110 €1,105.18
11 pcs available in stock
PVC-U ball valve C200/EPDM gaskets DN32 d40 + TCR02N 5100AC032024110 €1,122.05
7 pcs available in stock
PVC-U ball valve C200/EPDM gaskets DN40 d50 + TCR02N 5100AC040024110 €1,219.00
2 pcs available in stock
PVC-U ball valve C200/EPDM gaskets DN50 d63 + TCR02N 5100AC050024110 €1,212.68
15 pcs available in stock
