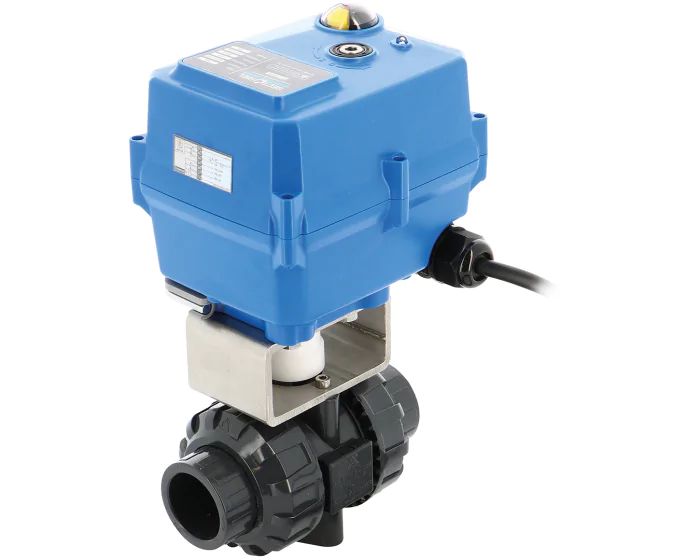

PVC-U/FKM ball valve CL1 + TCR05N electric actuator

The ball valve type CL1 + TCR provides automatic shut-off of pipes. PVC-U body and ball. Full bore. PTFE seats. FKM seal. TCR 05 electric actuator: IP 67 light duty. 230 V.
Choose your configuration
See all configurations
Réf.
CONF5101SC065024310
(Indicative price) €1,615.18
Details
Details
Option certificate 3.1 No
Maximum delta P (bar) 10
ATEX compatible No
Manual override By key
Declutchable No
Duty service S4 duty service - 50%
Protection class (IP) IP 67
Gasket FKM
Body material PVC-U
Number of ways 2
PS (bar) 10
Connections Solvent cement socket union
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type TCR05-N
Electric actuator series TCR Series
Seats PTFE
Voltage 95-265 V AC/DC
TS max (°C) 60
TS min (°C) 0
Warranty period 1 year
Electrical connection Cable 1.5 m

Configurations

Product Reference Price Stock
PVC-U ball valve CL1FKM gaskets DN65 d75 + TCR02N 5101SC065024310 €1,615.18
2 pcs available in stock
PVC-U ball valve CL1/FKM gaskets DN80 d90 + TCR02N 5101SC080024310 €1,933.32
20 pcs available in stock
PVC-U ball valve CL1FKM gaskets DN100 d110 + TCR02N 5101SC100024310 €2,196.30
3 pcs available in stock
