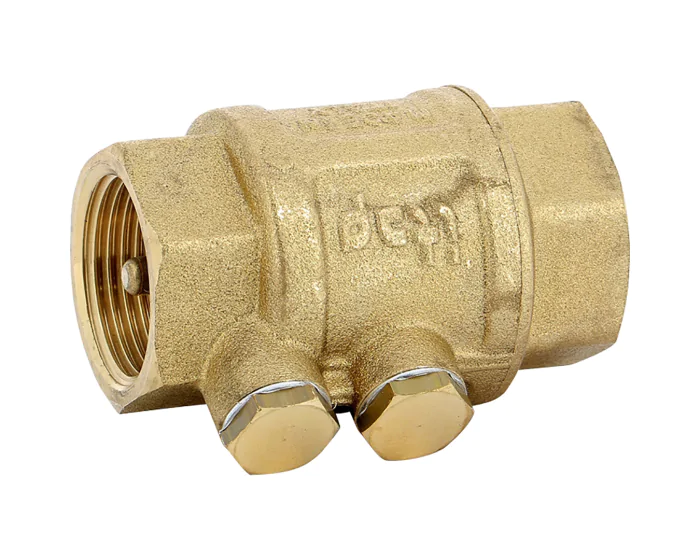

Roma spring check valve with drainer 315 PN25
The 315 Sferaco check valve with double guide, titled brass CW617N-4MS - with upstream and downstream drains - BSP female-female fitting with ACS (Attestation de Conformité Sanitaire), stainless steel obturator ASTM A182 F304, can be fitte
Documentation
Certificate of Conformity
pdf - 215 ko
Fiche technique clapet double guidage laiton à purges ACS FF
pdf - 509.4 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Details
Mounting direction | All positions |
---|---|
Thread standard | ISO 228-1 |
Closure member material | Brass CW617N |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Torque (Nm) | 106.4 |
DN | 15 |
Face to Face (mm) | 68.5 |
Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
Gasket | FKM |
Kv (m³/h) | 4.1 |
Body material | Brass CW617N |
PS (bar) | 25 |
Connections | BSP FF |
Seats | Brass CW617N |
TS max (°C) | 100 |
TS min (°C) | -10 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Obturator type | Spring |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Roma® spring check valve with drainer 315 3/8'' | 315003 | €27.68 |
61 pcs available in stock
|
|
Roma® spring check valve with drainer 315 1/2'' | 315004 | €29.20 |
162 pcs available in stock
|
|
Roma® spring check valve with drainer 315 3/4'' | 315005 | €36.30 |
244 pcs available in stock
|
|
Roma® spring check valve with drainer 315 1'' | 315006 | €49.25 |
Currently not in stock
|
|
Roma® spring check valve with drainer 315 1''1/4 | 315007 | €68.75 |
188 pcs available in stock
|
|
Roma® spring check valve with drainer 315 1''1/2 | 315008 | €93.75 |
82 pcs available in stock
|
|
Roma® spring check valve with drainer 315 2'' | 315009 | €139.40 |
9 pcs available in stock
|
