Sanitary manifolds with built-in valves SANR 3/4'' - Ø body 24,5mm

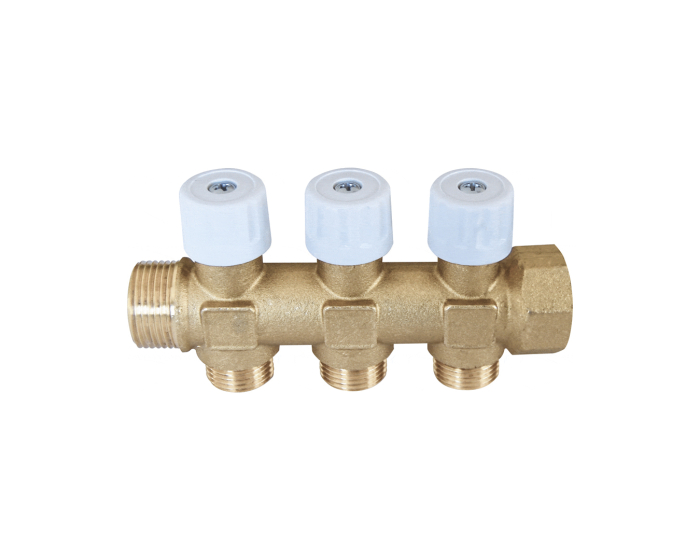

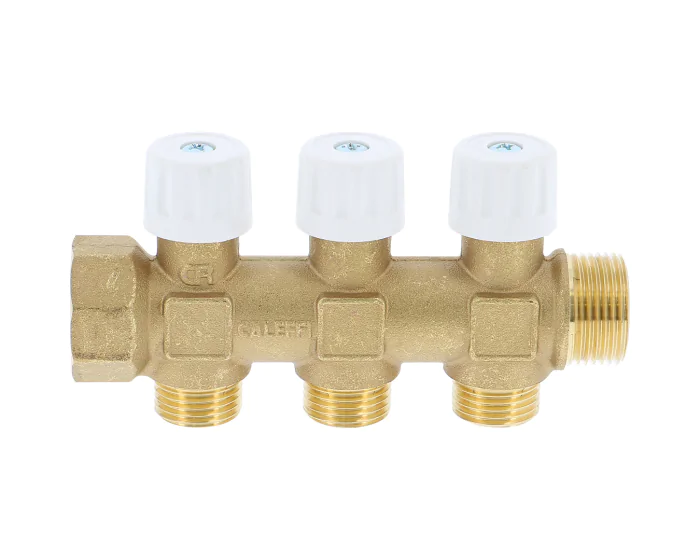

Available with a number of flat bearing outlets (2 to 5) at 35 mm centres, this brass distribution manifold with integrated fittings is space-saving.
Documentation
Details
| Body diameter (mm) | 24.5 |
|---|---|
| Outlet diameter | 1/2'' |
| Switching device | Yes |
| Modular | Yes |
| Air vent outlet | No |
| Centre distance (mm) | 35 |
| Supply diameter | 3/4'' |
| Nature of the bearing | Flat |
| Material | Brass |
| Torque (Nm) | 106.4 |
| Main product colour | White |
| Distribution manifold type | Female |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Sanitary manifolds with valves SANR 3/4'' - body Ø24,5mm - 2 outlets 1/2'' | SANR42 | €55.12 |
64 pcs available in stock
|
|
| Sanitary manifolds with valves SANR 3/4'' - body Ø24,5mm - 3 outlets 1/2'' | SANR43 | €70.55 |
117 pcs available in stock
|
|
| Sanitary manifolds with valves SANR 3/4'' - body Ø24,5mm - 4 outlets 1/2'' | SANR44 | €93.58 |
49 pcs available in stock
|
|
| Sanitary manifolds with valves SANR 3/4'' - body Ø24,5mm - 5 outlets 1/2'' | SANR45 | €109.00 |
71 pcs available in stock
|
