Documentation
Details
| Construction standard | MID 2014/32/UE - EN 1434 |
|---|---|
| Meter type | Mechanical energy meter |
| Type of energy meter | Heating |
| Horizontal/vertical mounting | Horizontal and vertical |
| Brand | MADDALENA |
| Transmission | On-site reading |
| Male output | 3/4'' |
| Jet | Single jet |
| Thread standard | ISO 228-1 |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Face to Face (mm) | 110.0 |
| Body material | Brass |
| PS (bar) | 16 |
| TS max (°C) | 15 |
| TS min (°C) | 90 |
| Warranty period | 2 years |
| Accuracy class meters | CLASS 3 |
| Connections | BSP MM |

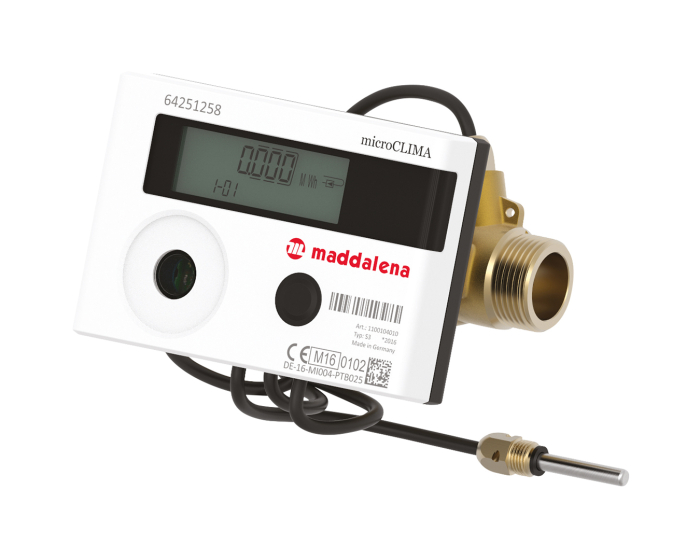

Single jet thermal energy meter mechanical design - Heating
Single jet thermal energy meter, model with MICROCLIMA integrator for residential billing, insensitive to sludge-laden water, detachable case.
