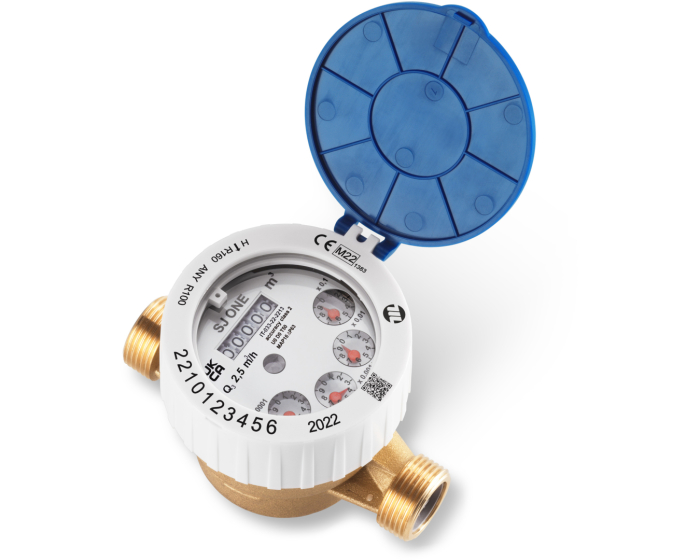

Single jet water meter 2740 for cold water MID R160
Discover the 2740 series single flow water meter for cold water from the Maddalena range, ACS, 4MS, pre-equipped with pulses, single jet, non-rotating dry dial, brass body, for water distribution networks
Documentation
Fiche technique
pdf - 710.2 ko
Notice montage compteur divisionnaire jet unique
pdf - 129.7 ko
Installation operating manual single jet water meter
pdf - 142 ko
Details
Construction standard | MID 2014/32/UE - EN 14154 |
---|---|
Vertical transition flow rate (L/h) | 40 |
Horizontal transition flow rate (L/h) | 25 |
Meter type | Individual water meter |
Type of transmission | Pulse outlet / Radio / Wired M-Bus |
Horizontal/vertical mounting | Horizontal and vertical |
Brand | MADDALENA |
Male output | 3/4'' |
Dial | Dry |
Jet | Single jet |
Thread standard | ISO 228-1 |
Application | Water supply and distribution network |
Torque (Nm) | 106.4 |
DN | 15 |
Face to Face (mm) | 110.0 |
Body material | Brass |
PS (bar) | 16 |
TS max (°C) | 0 |
TS min (°C) | 50 |
Warranty period | 2 years |
Nominal flow rate (m³/h) | 2.50 |
Accuracy class meters | MID R160H - MID R100VH |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Single jet water meter 2740 for cold water MID R160 bore 15 | 2740015 | €81.30 |
152 pcs available in stock
|
|
Single jet water meter 2740 for cold water MID R160 bore 20 | 2740020 | €94.28 |
24 pcs available in stock
|
|
Single jet water meter 2740 for cold water MID R160 bore 25 | 2740025 | €107.30 |
154 pcs available in stock
|
