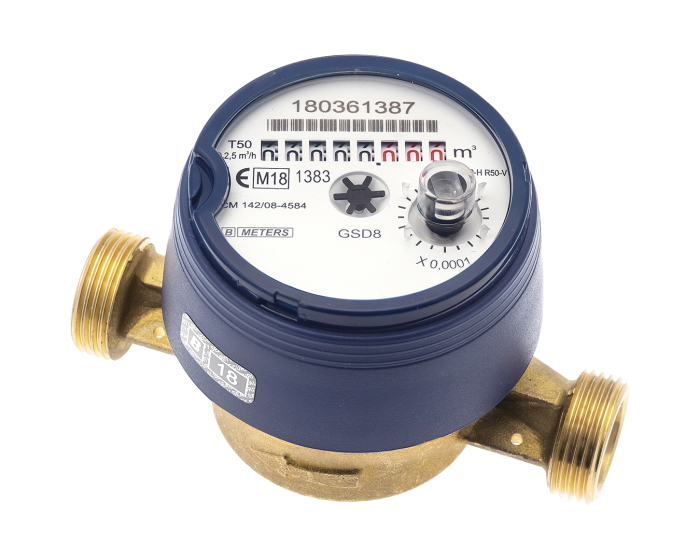

Single jet water meter for cold water MID R100
Discover the MID 1701 series divisional meter from the BMeters range, cold water model, ACS 4MS certified, brass body, direct reading on 8 rollers, IP68 protection for water distribution networks
Documentation
Details
| Construction standard | MID 2014/32/EU |
|---|---|
| Vertical transition flow rate (L/h) | 80.00 |
| Horizontal transition flow rate (L/h) | 40.00 |
| Meter type | Individual water meter |
| Type of transmission | Radio / Wired M-bus |
| Horizontal/vertical mounting | Horizontal and vertical |
| Brand | B METERS |
| Transmission | Radio Walk By / Fixed / wired M-Bus |
| Male output | 3/4'' |
| Dial | Dry |
| Jet | Single jet |
| Thread standard | ISO 228-1 |
| Application | Water supply and distribution network |
| Torque (Nm) | 106.4 |
| DN | 15 |
| Face to Face (mm) | 110.0 |
| Body material | Brass |
| PS (bar) | 16 |
| TS max (°C) | 0 |
| TS min (°C) | 30 |
| Warranty period | 2 years |
| Nominal flow rate (m³/h) | 2.50 |
| Accuracy class meters | MID R100H - MID R50VH |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Single jet water meter for cold water bore 15 MID R100 | 1701015 | €55.00 |
3091 pcs available in stock
|
|
| Single jet water meter for cold water bore 16 MID R100 | 1701020 | €69.52 |
862 pcs available in stock
|
