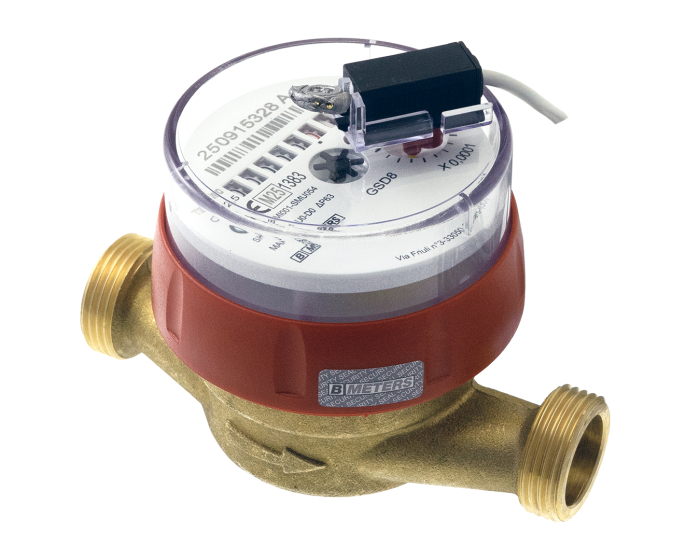

Single jet water meter with pulse transmitter for hot water MID R100
Discover the MID R100 1727 Series single jet meter from the BMeters range, hot water model, ACS 4MS certified, direct reading on 8 rollers, IP68 protection for water distribution networks
Documentation
Details
| Construction standard | MID 2014/32/EU |
|---|---|
| Vertical transition flow rate (L/h) | 80.00 |
| Horizontal transition flow rate (L/h) | 40.00 |
| Meter type | Individual water meter |
| Type of transmission | Pulse outlet |
| Horizontal/vertical mounting | Horizontal and vertical |
| Brand | B METERS |
| Transmission | On-site reading |
| Male output | 3/4'' |
| Dial | Dry |
| Jet | Single jet |
| Thread standard | ISO 228-1 |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Torque (Nm) | 106.4 |
| DN | 15 |
| Face to Face (mm) | 110.0 |
| Body material | Brass |
| PS (bar) | 16 |
| TS max (°C) | 30 |
| TS min (°C) | 90 |
| Warranty period | 2 years |
| Nominal flow rate (m³/h) | 2.50 |
| Accuracy class meters | MID R100H - MID R50VH |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Single jet water meter with pulse transmitter cold water bore 15 MID R100 | 1727015 | €121.48 |
53 pcs available in stock
|
|
| Single jet water meter with pulse transmitter cold water bore 16 MID R100 | 1727020 | €128.52 |
17 pcs available in stock
|
