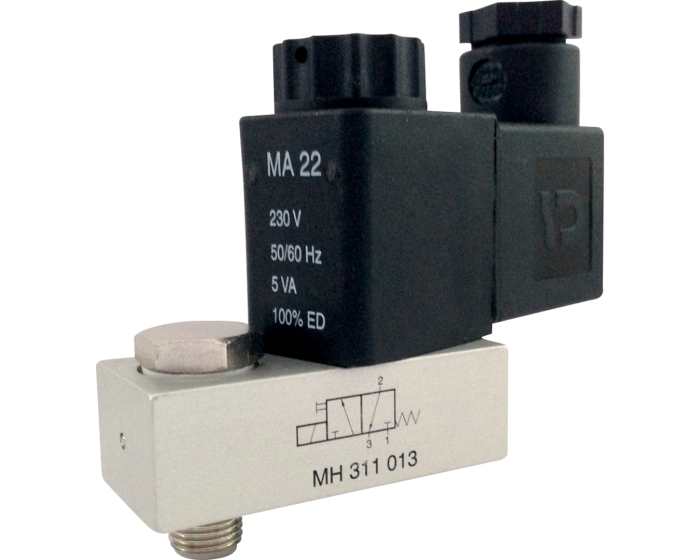

Solenoid pilot valve 3/2 MH manual setting
The solenoid valve type MH is a 3/2-way pilot valve made of anodised aluminium for the control of pneumatic valves.
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0 |
| Connector | T22 |
| Torque (Nm) | 106.4 |
| Diameter of passage | 1.2 |
| DN | 1/8'' |
| Fluid | Air / Neutral gases / Vacuum |
| Protection class (IP) | IP 65 |
| Body material | Aluminium |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 50 |
| TS min (°C) | -10 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 3/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Electrical connection | Connector T22 |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Solenoid pilot valve 3/2 MH manual setting 230V AC | 041901B | €75.00 |
36 pcs available in stock
|
|
| Solenoid pilot valve 3/2 MH manual setting 24V AC | 041902B | €75.00 |
45 pcs available in stock
|
|
| Solenoid pilot valve 3/2 MH manual setting 24V DC | 041903B | €75.00 |
35 pcs available in stock
|
