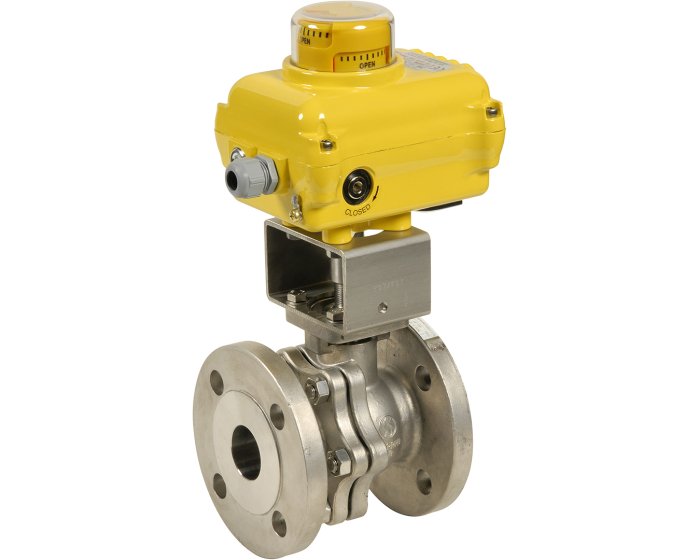

Split-body stainless steel ball valve 753 + SA/NA electric actuator

Choose your configuration
See all configurations
Réf.
CONF274402023010
(Indicative price) €1,668.33
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 316
Manual override By key
Torque (Nm) 106.4
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 115.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 40
Power (W) 6
Connections Flanged PN40
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 05
Electric actuator series SA/NA series
Seats TFM 1600
Operating time (s) 17.0
Voltage 230 V AC
TS max (°C) 200
TS min (°C) -30
Ball valve design 2-piece body
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe Yes

Configurations

Product Reference Price Stock
Split-body stainless steel flanged ball valve 753 DN15 + SA05 230V AC 274402023010 €1,668.32
61 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN20 + SA05 230V AC 274403023010 €1,749.30
47 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN25 + SA05 230V AC 274404023010 €1,875.30
55 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN32 + SA05 230V AC 274405023010 €2,109.12
37 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN40 + SA05 230V AC 274406023010 €2,261.80
31 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN50 + NA09 230V AC 274407023120 €3,766.08
10 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN65 + NA09 230V AC 274408023120 €4,062.68
10 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN80 + NA15 230V AC 274409023130 €5,118.58
19 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN100 + NA28 230V AC 274410023150 €6,550.05
10 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN125 + NA28 230V AC 274411023150 €9,289.58
10 pcs available in stock
Split-body stainless steel flanged ball valve 753 DN150 + NA38 230V AC 274412023160 €11,400.18
2 pcs available in stock
