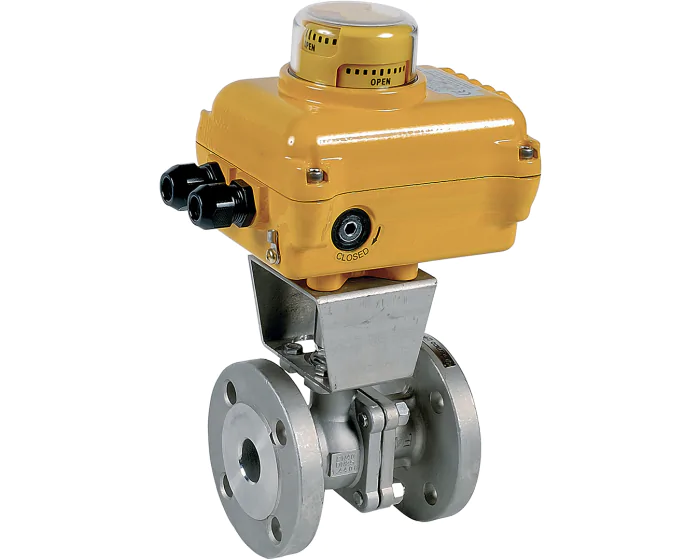

Split-body stainless steel ball valve 763 + SA/NA electric actuator

The split-body 763 ball valve has a stainless steel 1.4408 body and ball and PTFE/glass seats. It is actuated with an SA/NA electric actuator. PS: 16 bar, TS: 200°C. Flanges PN16 RF.
Choose your configuration
See all configurations
Réf.
CONF274362023010
(Indicative price) €1,519.18
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 316
Manual override By key
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 115.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 40
Power (W) 6
Connections Flanged PN40
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 05
Electric actuator series SA/NA series
Seats PTFE-Glass
Operating time (s) 17.0
TS max (°C) 200
TS min (°C) -20
Ball valve design 2-piece body
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe Yes

Configurations

Product Reference Price Stock
Split-body stainless steel flanged ball valve 763 DN15 + SA05 230V AC 274362023010 €1,519.18
130 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN20 + SA05 230V AC 274363023010 €1,537.05
130 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN25 + SA05 230V AC 274364023010 €1,587.92
130 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN25 +SA05 24V AC/DC 274364023011 €1,587.92
107 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN32 + SA05 230V AC 274365023010 €1,738.82
84 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN32 +SA05 24V AC/DC 274365023011 €1,738.82
84 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN40 + SA05 230V AC 274366023010 €1,874.88
130 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN40 +SA05 24V AC/DC 274366023011 €1,874.88
107 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN50 + NA06 230V AC 274367023110 €3,018.25
10 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN65 + NA09 230V AC 274368023120 €3,829.70
22 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN80 + NA15 230V AC 274369023130 €4,391.58
27 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN100 + NA28 230V AC 274370023150 €5,271.95
11 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN125 + NA28 230V AC 274371023150 €6,756.38
11 pcs available in stock
Split-body stainless steel flanged ball valve 763 DN150 + NA60 230V AC 274372023180 €9,579.45
7 pcs available in stock
