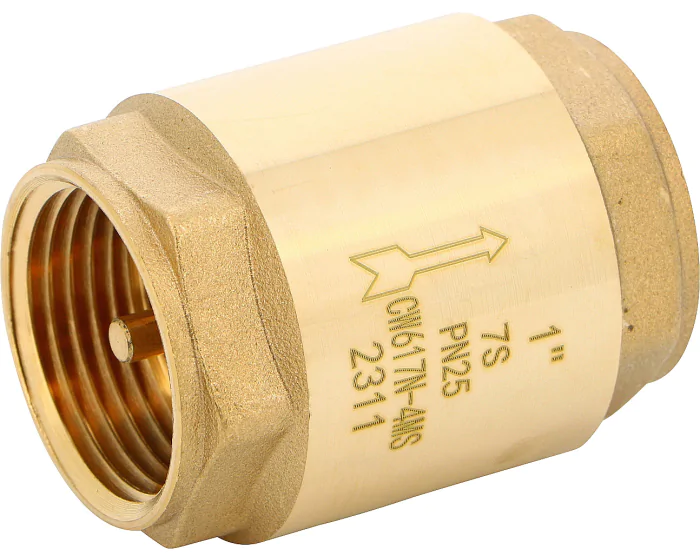

Spring check valve with brass clack 307 PN25
The 307 Sferaco double guide check valve Brass CW617N-4MS Female-Female with ACS, Brass obturator can be fitted in any position.
Documentation
Certificat ACS clapet à disque laiton
pdf - 293 ko
Certificate of Conformity
pdf - 214.6 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Details
Mounting direction | All positions |
---|---|
Thread standard | ISO 228-1 |
Closure member material | Brass CW614N |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Torque (Nm) | 106.4 |
DN | 15 |
Face to Face (mm) | 47.5 |
Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
Gasket | NBR |
Body material | Brass CW617N |
PS (bar) | 25 |
Connections | BSP FF |
Seats | Brass CW617N |
TS max (°C) | 100 |
TS min (°C) | -10 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Obturator type | Spring |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Spring check valve with brass clack 307 3/8'' | 307003 | €5.82 |
540 pcs available in stock
|
|
Spring check valve with brass clack 307 1/2'' | 307004 | €6.75 |
5189 pcs available in stock
|
|
Spring check valve with brass clack 307 3/4'' | 307005 | €10.00 |
4905 pcs available in stock
|
|
Spring check valve with brass clack 307 1'' | 307006 | €16.10 |
2834 pcs available in stock
|
|
Spring check valve with brass clack 307 1''1/4 | 307007 | €22.68 |
1468 pcs available in stock
|
|
Spring check valve with brass clack 307 1''1/2 | 307008 | €32.62 |
254 pcs available in stock
|
|
Spring check valve with brass clack 307 2'' | 307009 | €50.75 |
542 pcs available in stock
|
|
Spring check valve with brass clack 307 2''1/2 | 307010 | €91.05 |
161 pcs available in stock
|
|
Spring check valve with brass clack 307 3'' | 307011 | €119.12 |
111 pcs available in stock
|
|
Spring check valve with brass clack 307 4'' | 307012 | €193.55 |
54 pcs available in stock
|
