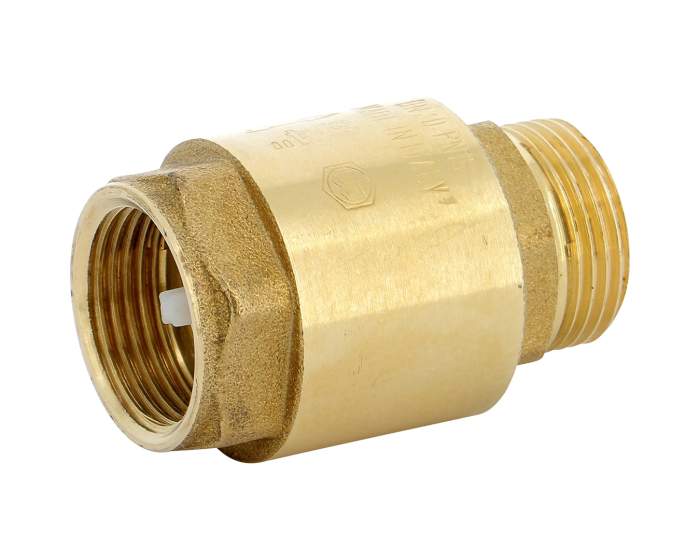

Spring check valve with nylon clack female/male 316
Sferaco's 316 Sferaco Dual Guide Check Valve CW617N-4MS Female-Male with ACS, Nylon obturator is all position.
Documentation
Details
| Mounting direction | All positions |
|---|---|
| Thread standard | ISO 228-1 |
| Closure member material | POM |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Torque (Nm) | 106.4 |
| DN | 15 |
| Face to Face (mm) | 50.0 |
| Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
| Gasket | NBR |
| Body material | Brass CW617N |
| PS (bar) | 16 |
| Connections | BSP MF |
| Seats | Brass CW617N |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Drinking water compatibility | Yes |
| Warranty period | 2 years |
| Obturator type | Spring |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Spring check valve with nylon clack female/male 316 3/8'' | 316003 | €17.65 |
523 pcs available in stock
|
|
| Spring check valve with nylon clack female/male 316 1/2'' | 316004 | €17.30 |
Currently not in stock
|
|
| Spring check valve with nylon clack female/male 316 3/4'' | 316005 | €23.10 |
87 pcs available in stock
|
|
| Spring check valve with nylon clack female/male 316 1'' | 316006 | €30.38 |
1348 pcs available in stock
|
