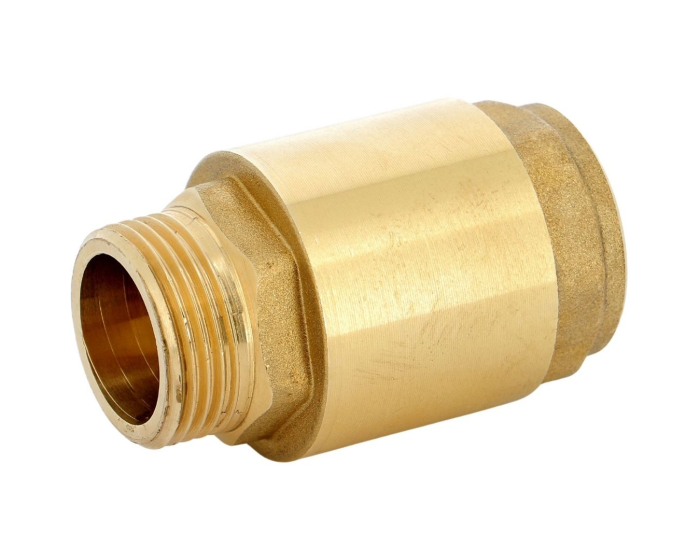

Spring check valve with nylon clack male/female 317
The 317 Sferaco double guide check valve CW617N-4MS titled brass male-female with ACS (Attestation de Conformité Sanitaire), obturator Nylon is mounted in all positions.
Documentation
Certificate of Conformity
pdf - 214.5 ko
Fiche technique clapet double guidage laiton ACS MF
pdf - 445 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Details
Mounting direction | All positions |
---|---|
Thread standard | ISO 228-1 |
Closure member material | POM |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Torque (Nm) | 106.4 |
DN | 15 |
Face to Face (mm) | 53.0 |
Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
Gasket | NBR |
Body material | Brass CW617N |
PS (bar) | 16 |
Connections | BSP MF |
Seats | Brass CW617N |
TS max (°C) | 110 |
TS min (°C) | -10 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Obturator type | Spring |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Spring check valve with nylon clack male/female 317 3/8'' | 317003 | €17.65 |
271 pcs available in stock
|
|
Spring check valve with nylon clack male/female 317 1/2'' | 317004 | €17.48 |
339 pcs available in stock
|
|
Spring check valve with nylon clack male/female 317 3/4'' | 317005 | €22.80 |
216 pcs available in stock
|
|
Spring check valve with nylon clack male/female 317 1'' | 317006 | €30.48 |
209 pcs available in stock
|
