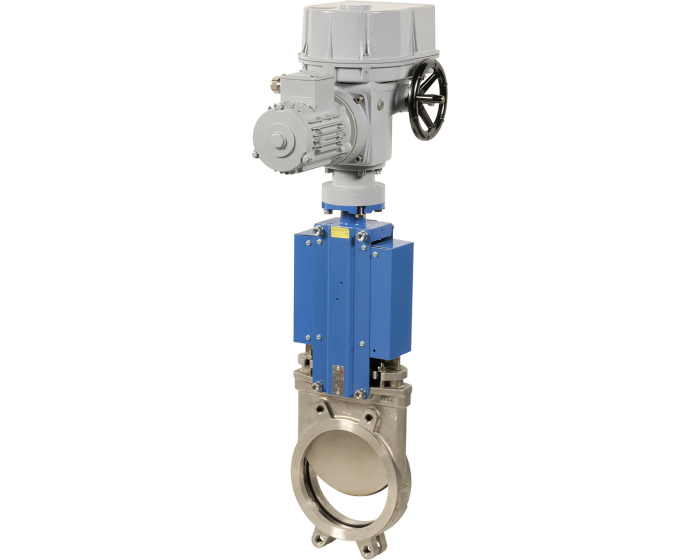

St. steel knife gate valve 172 + SO2/MO3 multi-turn electric actuator
Knife valves stainless steel body 1.4408, EPDM seat with electric actuator REGADA SO2/MO3. PS: 10 bar - TS: 110°C. Unidirectional. Mounting between flanges PN10.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Shaft/stem matérial | Stainless steel 303 |
| ATEX compatible | No |
| Manual override | By handwheel |
| Torque (Nm) | 106.4 |
| Duty service | S4 duty service - 25% |
| Face to Face (mm) | 40.0 |
| Protection class (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Knife gate material | Stainless steel 316 |
| Body material | Stainless steel CF8M (1.4408) |
| Packing gland | PTFE + EPDM |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Function | On-off |
| Electric actuator type | SO2 |
| Electric actuator series | SO/MO series (REGADA) |
| Seats | EPDM |
| Operating time (s) | 39 |
| Voltage | 230 V AC |
| TS max (°C) | 110 |
| TS min (°C) | 0 |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category I |
| Electrical connection | by gland packing |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel knife gate valve 172 DN50 + SO2 230V AC | 445004027100 | €7,208.40 |
Currently not in stock
|
|
| Stainless steel knife gate valve 172 DN65 + SO2 230V AC | 445005027100 | €7,294.05 |
Currently not in stock
|
|
| Stainless steel knife gate valve 172 DN80 + SO2 230V AC | 445006027100 | €7,515.95 |
Currently not in stock
|
|
| Stainless steel knife gate valve 172 DN100 + SO2 230V AC | 445007027100 | €7,679.95 |
Currently not in stock
|
|
| Stainless steel knife gate valve 172 DN125 + SO2 230V AC | 445008027100 | €7,906.25 |
Currently not in stock
|
|
| Stainless steel knife gate valve 172 DN150 + SO2 230V AC | 445009027100 | €8,267.62 |
Currently not in stock
|
|
| Stainless steel knife gate valve 172 DN200 + MO3 230V AC | 445010027150 | €12,191.50 |
Currently not in stock
|
|
| Stainless steel knife gate valve 172 DN250 + MO3 230V AC | 445011027150 | €13,457.20 |
Currently not in stock
|
|
| Stainless steel knife gate valve 172 DN300 + MO3 230V AC | 445012027150 | €15,852.02 |
Currently not in stock
|
