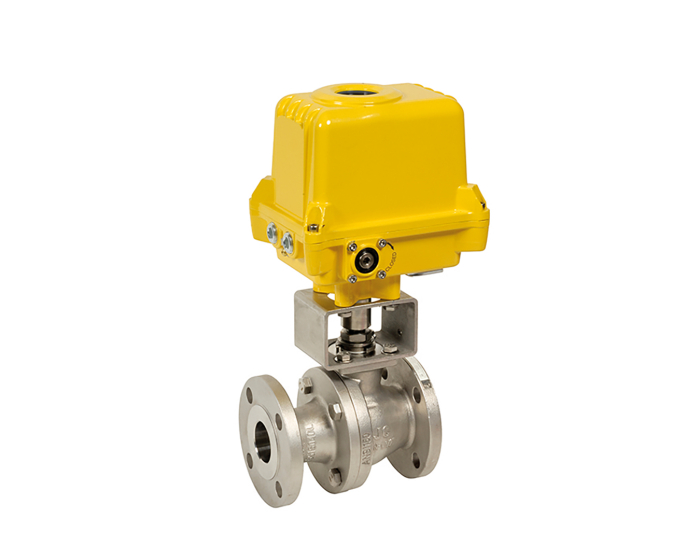

Stainless steel ball valve 515IIT + SA-X ATEX electric actuator

The JC 515IIT ball valve has a CF8M stainless steel body and ball, PTFE seats. It is actuated with an ATEX electric actuator. PS: 20 bar, TS: 230°C. Flanges ANSI150 RF.
Choose your configuration
See all configurations
Réf.
CONF515IIT015023310
(Indicative price) €2,209.68
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
ATEX atmosphere IIB
Shaft/stem matérial Stainless steel 316
Manual override By key
Torque (Nm) 106.4
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 108.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx d
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 20
Power (W) 6
Connections Flanged #150 PN20
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA05-X
Electric actuator series SA-X/NA-X ATEX series
Seats PTFE
Operating time (s) 17.0
Surface temperature T4
Voltage 230 V AC
TS max (°C) 230
TS min (°C) -50
Ball valve design 2-piece body
ATEX zone 1. 2
Warranty period 1 year
CE Risk category III
Range JC Valves
Electrical connection By gland packing ATEX
Fire safe Yes

Configurations

Product Reference Price Stock
Stainless steel ball valve 515 IIT ANSI 150 1/2'' + SA05X 230V AC 515IIT015023310 €2,209.68
18 pcs available in stock
Stainless steel ball valve 515 IIT ANSI 150 3/4'' + SA05X 230V AC 515IIT020023310 €2,280.55
18 pcs available in stock
Stainless steel ball valve 515 IIT ANSI 150 1'' + SA05X 230V AC 515IIT025023310 €2,313.80
18 pcs available in stock
Stainless steel ball valve 515 IIT ANSI 150 2'' + NA09X 230V AC 515IIT050023330 €3,763.50
6 pcs available in stock
Stainless steel ball valve 515 IIT ANSI 150 2''1/2 + NA09X 230V AC 515IIT065023330 €4,545.18
6 pcs available in stock
Stainless steel ball valve 515 IIT ANSI 150 3'' + NA15X 230V AC 515IIT080023340 €5,638.18
8 pcs available in stock
Stainless steel ball valve 515 IIT ANSI 150 4'' + NA28X 230V AC 515IIT100023360 €7,864.05
3 pcs available in stock
