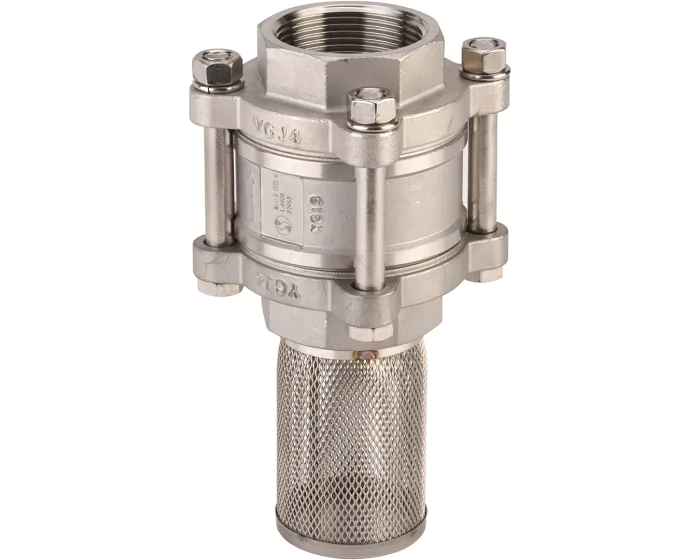

Stainless steel CF8M foot valve 383 3-piece body BSP
The 383 series is a foot valve, in stainless steel, with strainer basket, BSP threaded ends, metal-metal tightness and PTFE gaskets. It is ACS certified for drinking water and complies with CE 1935 for the food idnustry.
Documentation
Certificat FDA Clapet inox 3 pièces
pdf - 223 ko
Certificate of Conformity
pdf - 215.1 ko
Fiche technique clapet crépine à disque 3 pièces inox BSP
pdf - 568.7 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Technical datasheet stainless steel foot valve 3 pieces BSP
pdf - 504.7 ko
Details
Option certificate 3.1 | Yes |
---|---|
Mounting direction | Vertical |
Construction standard | EN 12516-1 - ASME B16.34 |
CE risk category | III Module H |
Thread standard | ISO 228-1 |
Tightness test standard | API 598. table 6 |
Closure member material | Stainless steel AISI 316 |
Strainer basket material | Stainless steel AISI 316 |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
ATEX compatible | Yes |
Torque (Nm) | 106.4 |
Diameter of passage | 14.00 |
DN | 15 |
Sealing | Metal / Metal |
Fluid | Acids |
Gasket | PTFE |
Kv (m³/h) | 2.2 |
Body material | Stainless steel CF8M (1.4408) |
PS (bar) | 63 |
Connections | BSP F |
Seats | Stainless steel AISI 316 |
Screen (mesh) | 12/10° |
TS max (°C) | 200 |
TS min (°C) | -20 |
ATEX zone | 1 & 21. 2 & 22 |
CE | Yes |
Total height (mm) | 63 |
Obturator type | Spring |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Stainless steel CF8M foot valve 383 3 piece body BSP 3/8'' | 383003 | €99.90 |
163 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3-piece body BSP 1/2'' | 383004 | €108.10 |
226 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3 piece body BSP 3/4'' | 383005 | €143.00 |
256 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3 piece body BSP 1'' | 383006 | €176.40 |
132 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3 piece body BSP 1''1/4 | 383007 | €233.90 |
205 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3 piece body BSP 1''1/2 | 383008 | €286.45 |
30 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3 piece body BSP 2'' | 383009 | €427.05 |
135 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3 piece body BSP 2''1/2 | 383010 | €822.45 |
21 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3 piece body BSP 3'' | 383011 | €1,019.18 |
32 pcs available in stock
|
|
Stainless steel CF8M foot valve 383 3 piece body BSP 4'' | 383012 | €1,462.28 |
18 pcs available in stock
|
