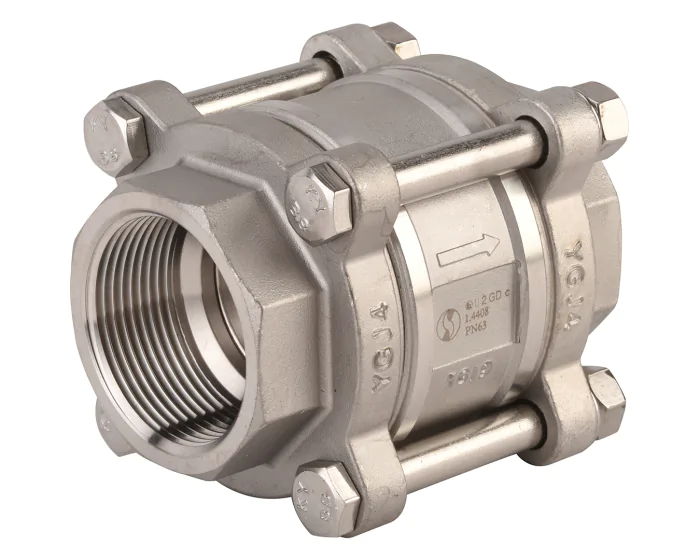

Stainless steel CF8M spring check valve 380 3-piece body BSP
The 380 series is a 3-piece body spring check valve, in stainless steel, with BSP threaded ends, metal-metal tightness and PTFE gaskets. It is ACS certified for drinking water and complies with CE 1935 for the food idnustry.
Documentation
Details
Spring all positions
The spring check valve, spring-assisted check valve or spring-loaded check valve all positions is one of the devices used in plumbing to control backflows of fluids. « All positions » means that the valve may be mounted in any position, as long as the flow follows the arrow seen on the valve body. This type of check valve ensures a great metal/metal tightness at all times.
The spring check valve is especially used in the chemical, petrochemical and pharmaceutical industries, as well as in compressed air installations and drinking water systems.
Syveco offers an ACS certified spring check valve. This device comes in four different models, with distinct connectors: BSP or NPT threads, or SW or BW connections. This is a three-piece spring valve: the body and disc are made of stainless steel, while the seat is in PTFE. With sizes ranging from ¼'' to 4'', this spring check valve all positions allows -20 °C to +200 °C in temperature, and a maximum pressure of 63 bar.
Details
| Option certificate 3.1 | Yes |
|---|---|
| Mounting direction | All positions |
| Construction standard | EN 12516-1 - ASME B16.34 |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | API 598. table 6 |
| Closure member material | Stainless steel AISI 316 |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| Torque (Nm) | 106.4 |
| Diameter of passage | 14.00 |
| DN | 15 |
| Face to Face (mm) | 63.0 |
| Sealing | Metal / Metal |
| Fluid | Acids |
| Gasket | PTFE |
| Kv (m³/h) | 2.2 |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | Stainless steel AISI 316 |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| ATEX zone | 1 & 21. 2 & 22 |
| Drinking water compatibility | Yes |
| CE | Yes |
| Obturator type | Spring |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 1/4'' | 380002 | €63.95 |
354 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 3/8'' | 380003 | €63.95 |
165 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3-piece body BSP 1/2'' | 380004 | €80.68 |
1565 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 3/4'' | 380005 | €105.72 |
694 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 1'' | 380006 | €124.00 |
425 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 1''1/4 | 380007 | €172.45 |
211 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 1''1/2 | 380008 | €248.78 |
1430 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 2'' | 380009 | €356.00 |
273 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 2''1/2 | 380010 | €616.82 |
97 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 3'' | 380011 | €784.32 |
35 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 380 3 piece body BSP 4'' | 380012 | €1,168.35 |
18 pcs available in stock
|
