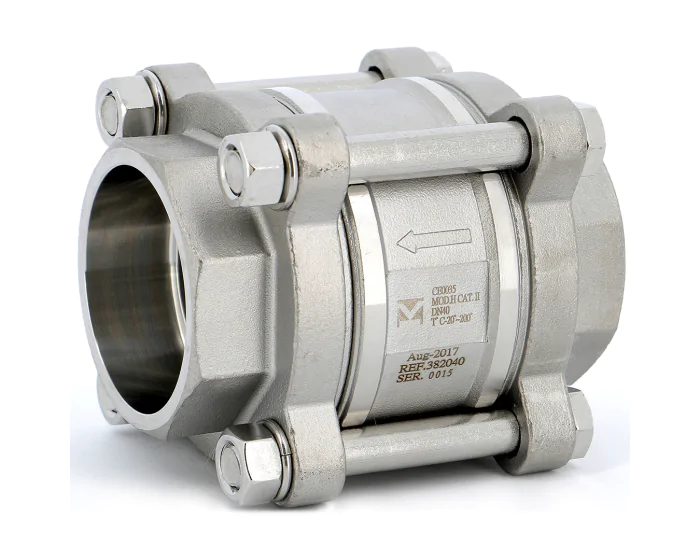

Stainless steel CF8M spring check valve 382 3-piece body SW
The 382 series is a 3-piece body spring check valve, in stainless steel, with SW ends, metal-metal tightness and PTFE gaskets. It is ACS certified for drinking water and complies with CE 1935 for the food idnustry.
Documentation
Details
| DN inches NPS | 2'' |
|---|---|
| Option certificate 3.1 | Yes |
| Mounting direction | All positions |
| Construction standard | EN 12516-1 - ASME B16.34 |
| CE risk category | III Module H |
| Tightness test standard | API 598. table 6 |
| Closure member material | Stainless steel AISI 316 |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| Torque (Nm) | 106.4 |
| Diameter of passage | 49.00 |
| Face to Face (mm) | 117.0 |
| Sealing | Metal / Metal |
| Fluid | Acids |
| Gasket | PTFE |
| Kv (m³/h) | 25.1 |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 63 |
| Connections | Welding SW |
| Seats | Stainless steel AISI 316 |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| ATEX zone | 1 & 21. 2 & 22 |
| Drinking water compatibility | Yes |
| CE | Yes |
| Obturator type | Spring |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel CF8M spring check valve 382 3 piece body SW 1/4'' | 382008 | €63.95 |
75 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 3/8'' | 382010 | €63.95 |
86 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 1/2'' | 382015 | €80.68 |
26 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 3/4'' | 382020 | €105.72 |
Currently not in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 1'' | 382025 | €124.00 |
7 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 1''1/4 | 382032 | €172.45 |
43 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 1''1/2 | 382040 | €248.78 |
Currently not in stock
|
|
| Stainless steel CF8M spring check valve 382 3-piece body SW 2'' | 382050 | €356.00 |
Currently not in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 2''1/2 | 382065 | €616.82 |
28 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 3'' | 382080 | €784.32 |
15 pcs available in stock
|
|
| Stainless steel CF8M spring check valve 382 3 piece body SW 4'' | 382100 | €1,168.35 |
4 pcs available in stock
|
