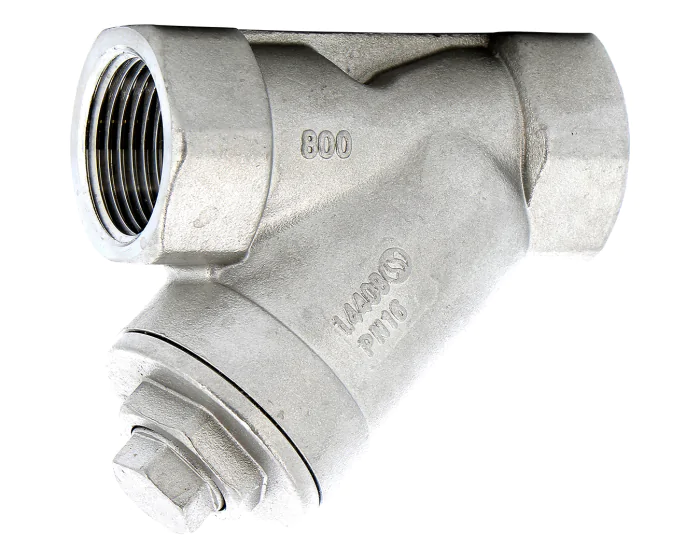

Stainless steel CF8M Y-strainer 230 BSP
The 230 series Y-strainer consists of a stainless steel body, removable screen, cap with drain, BSP threaded ends. It complies with CE 1935 for food industry.
Documentation
Certificate of Conformity
pdf - 211.6 ko
Fiche technique filtre tamis Y inox BSP
pdf - 273.3 ko
Notice montage filtre à tamis en Y taraudé femelle inox
pdf - 171.1 ko
Installation operating manual stainless steel Y strainer
pdf - 138.7 ko
Technical datasheet stainless steel Y strainer female BSP
pdf - 290.4 ko
Spare parts
Details
Option certificate 3.1 | Yes |
---|---|
DN metric | 15/21 |
Bonnet material | Stainless steel ASTM A351 CF8M |
Mounting direction | Horizontal or vertical |
Screen material | AISI 304 stainless steel |
CE risk category | III Module H |
Accessories for flanges | Stainless steel ASTM A351 CF8M |
Thread standard | ISO 228-1 |
Application | Industry |
Torque (Nm) | 106.4 |
DN | 15 |
Face to Face (mm) | 64.0 |
Fluid | Acids |
Gasket | PTFE |
Body material | Stainless steel CF8M (1.4408) |
PS (bar) | 16 |
Connections | BSP FF |
Screen (mesh) | 10/10° |
TS max (°C) | 200 |
TS min (°C) | -50 |
Warranty period | 2 years |
CE | Yes |
Filter design | Y |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Stainless steel CF8M Y-strainer 230 BSP 1/4'' | 230002 | €21.25 |
46 pcs available in stock
|
|
Stainless steel CF8M Y-strainer 230 BSP 3/8'' | 230003 | €21.25 |
373 pcs available in stock
|
|
Stainless steel CF8M Y-strainer 230 BSP 1/2'' | 230004 | €21.25 |
3344 pcs available in stock
|
|
Stainless steel CF8M Y-strainer 230 BSP 3/4'' | 230005 | €28.70 |
Currently not in stock
|
|
Stainless steel CF8M Y-strainer 230 BSP 1'' | 230006 | €42.50 |
258 pcs available in stock
|
|
Stainless steel CF8M Y-strainer 230 BSP 1''1/4 | 230007 | €54.55 |
17 pcs available in stock
|
|
Stainless steel CF8M Y-strainer 230 BSP 1''1/2 | 230008 | €74.08 |
454 pcs available in stock
|
|
Stainless steel CF8M Y-strainer 230 BSP 2'' | 230009 | €104.95 |
106 pcs available in stock
|
