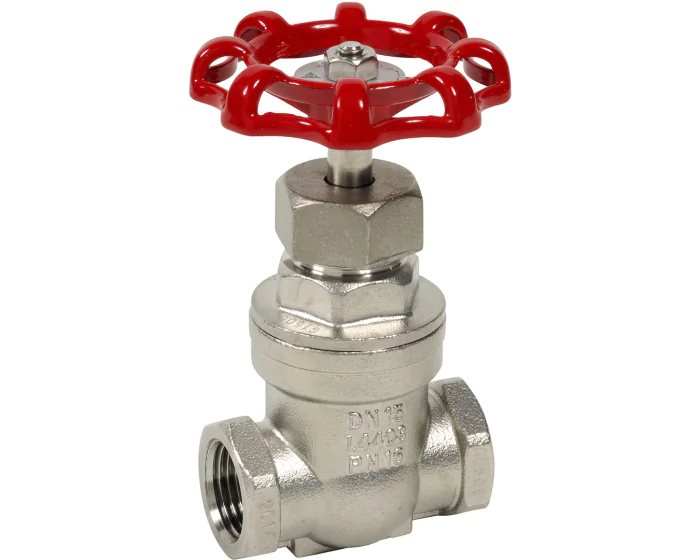

Stainless steel gate valve 106 BSP female/female

Syveco offers the 106 series stainless steel gate valve: female threaded BSP, full bore, rotating non-rising stem with inner thread, PTFE packing gland and PTFE bonnet gasket.
Choose your configuration
See all configurations
Réf.
CONF106004
(Indicative price) €139.50
Details
Details
Bonnet material Stainless steel ASTM A351 CF8M
CE risk category III Module H
Thread standard ISO 228-1
Tightness test standard EN 12266-1. Rate A
Bonnet Screwed
Opening device Handwheel
Application Industry
Shaft/stem matérial Stainless steel AISI 316
Torque (Nm) 106.4
Diameter of passage 15.00
DN 15
Face to Face (mm) 55.0
Sealing Metal / Metal
Fluid Acids
Gasket PTFE
Kv (m³/h) 19.2
Body material Stainless steel CF8M (1.4408)
Gate material Stainless steel ASTM A351 CF8M
Bore Full
Packing gland Yes
PS (bar) 16
Connections BSP FF
Seats Stainless steel ASTM A351 CF8M
TS max (°C) 180
TS min (°C) -20
Warranty period 2 years
Type of stem Non-rising
CE Yes

Configurations

Product Reference Price Stock
Stainless steel gate valve 106 BSP 1/2'' 106004 €139.50
81 pcs available in stock
Stainless steel gate valve 106 BSP 3/4'' 106005 €144.80
17 pcs available in stock
Stainless steel gate valve 106 BSP 1'' 106006 €174.88
Currently not in stock
Stainless steel gate valve 106 BSP 1''1/4 106007 €223.30
37 pcs available in stock
Stainless steel gate valve 106 BSP 1''1/2 106008 €359.38
59 pcs available in stock
Stainless steel gate valve 106 BSP 2'' 106009 €452.45
17 pcs available in stock
