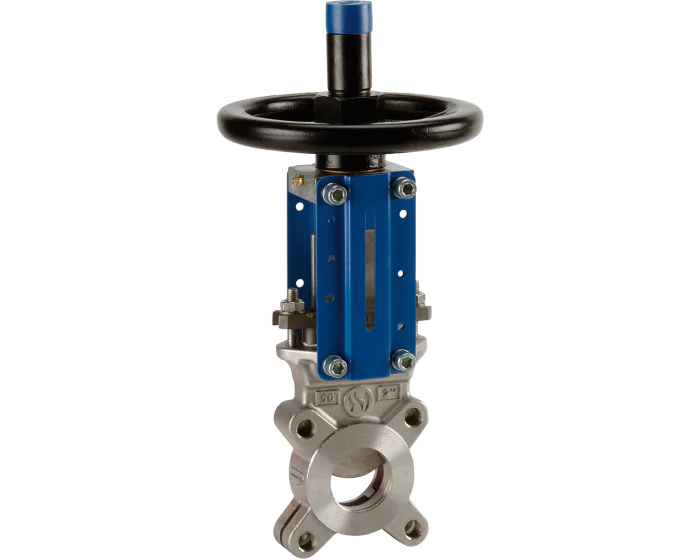

Stainless steel knife gate valve 172 F304 gate/EPDM seat with wheel

The 172 series unidirectional knife gate valve is made of stainless steel with EPDM seat, rising stem, non rising handwheel, lug type, PN10 flange connection. It is suitable for waste water, paper pulp, chemical, food industry, powder.
Choose your configuration
See all configurations
Réf.
CONF172050
(Indicative price) €660.95
Details
Details
Option certificate 3.1 Yes
Tightness test standard ISO 5208. Rate A
Opening device Handwheel
Application Water supply and distribution network
Shaft/stem matérial Stainless steel AISI 304
Torque (Nm) 106.4
Diameter of passage 50.00
Face to Face (mm) 40.0
Fluid Abrasive fluids / Dirty water / Sludge
Body material Stainless steel CF8M (1.4408)
Packing gland Yes
PS (bar) 10
Connections Between flanges PN10/16
Seats EPDM
TS max (°C) 110
TS min (°C) -15
Warranty period 2 years
Type of stem Rising

Configurations

Product Reference Price Stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN50 172050 €660.95
Currently not in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN65 172065 €786.82
9 pcs available in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN80 172080 €933.62
Currently not in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN100 172100 €1,038.62
73 pcs available in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN125 172125 €1,258.88
18 pcs available in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN150 172150 €1,584.95
32 pcs available in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN200 172200 €2,542.88
28 pcs available in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN250 172250 €3,921.20
35 pcs available in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN300 172300 €6,168.55
10 pcs available in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN350 172350 €10,593.55
11 pcs available in stock
Stainless steel knife gate valve 172 F304 gate/EPDM seat - wheel DN400 172400 €12,721.05
3 pcs available in stock
