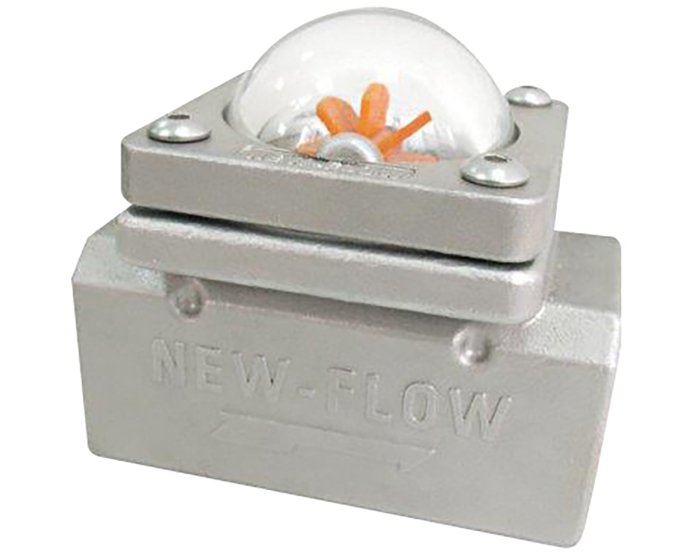

Stainless steel sight glass with rotor NAW 2 - 2241 BSP

Rotor sight glass controller, stainless steel body CF8M (1.4408), tempered glass dome, PP rotor. PS: 16 bar, TS: 80°C, G threaded.
Choose your configuration
See all configurations
Réf.
CONF224100
(Indicative price) €336.63
Details
Details
Option certificate 3.1 No
DN 1/4''
Face to Face (mm) 76.0
Gasket FKM
Body material Stainless steel CF8M (1.4408)
PS (bar) 12
Connections BSP FF
TS max (°C) 80
TS min (°C) -5
Sight glass type With rotor
Direction Unidirectional
Warranty period 1 year
CE Excluded (Article 4. §3)

Configurations

Product Reference Price Stock
Stainless steel sight glass with rotor NAW 2 - 2241 BSP 1/4'' 224100 €336.62
6 pcs available in stock
Stainless steel sight glass with rotor NAW 2 - 2241 BSP 3/8'' 224101 €366.68
15 pcs available in stock
Stainless steel sight glass with rotor NAW 2 - 2241 BSP 1/2'' 224102 €366.68
Currently not in stock
Stainless steel sight glass with rotor NAW 2 - 2241 BSP 3/4'' 224103 €455.55
3 pcs available in stock
Stainless steel sight glass with rotor NAW 2 - 2241 BSP 1'' 224104 €455.55
1 pcs available in stock
